PTC Resettable Fuses
Use the filters and product table below to compare PTC Resettable Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R075-APPTC RESET FUSE 60V 750MA RADIAL |
11,877 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.201" (5.10mm) |
|
MF-SMDF030-2PTC RESET FUSE 60V 300MA 2018 |
5,669 | - |
|
Datasheet | 2018 (5045 Metric), Concave | Multifuse®, MF-SMDF | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 800 mA | 20 A | 1.5 s | 450 mOhms | 2.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.043" (1.09mm) | - |
|
MF-USMF150-2PTC RESET FUSE 6V 1.5A 1210 |
4,362 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 40 A | 5 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
MF-RX050/72-0PTC RESET FUSE 72V 500MA RADIAL |
2,298 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-R050-0-17PTC RESETTABLE 0.5A 60V RADIAL L |
2,090 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

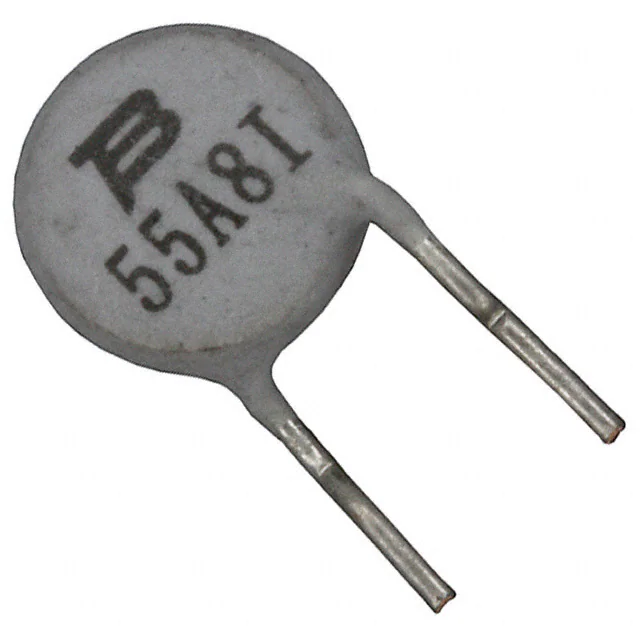

CMF-RL55A-0PTC RESET FUSE 220V 50MA RADIAL |
1,798 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 55 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
|
MF-RG700-2PTC RESET FUSE 16V 7A RADIAL |
1,633 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 8 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.740" (18.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RX040/72-0PTC RESET FUSE 72V 400MA RADIAL |
1,601 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.9 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
.JPG "MF-NSMF125-2")
|
MF-NSMF125-21206 POLYMER PTC 1.25A/6V |
1,324 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 200 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|

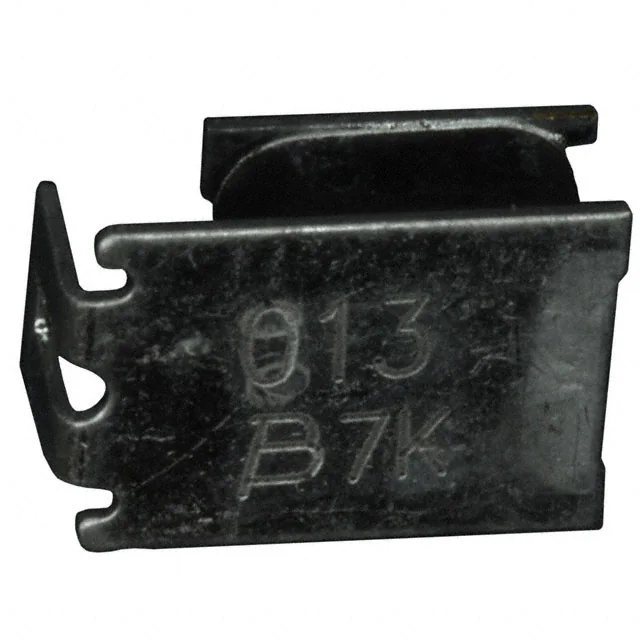

MF-SM013/250-2PTC RESET FUSE 60V 130MA 2SMD |
11,915 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM/250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | - | 3 A | - | 6.5 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | - | - | Surface Mount | 0.350" L x 0.283" W (8.90mm x 7.20mm) | - | 0.402" (10.20mm) | - |
PTC Resettable Fuses FAQ
Common questions about filtering, comparing and sourcing PTC Resettable Fuses components.
How can I narrow the PTC Resettable Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific PTC Resettable Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
