PTC Resettable Fuses
Use the filters and product table below to compare PTC Resettable Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-MSMF050-2PTC RESET FUSE 15V 500MA 1812 |
455 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
.JPG "MF-NSMF075-2")
|
MF-NSMF075-2PTC RESET FUSE 6V 750MA 1206 |
1,926 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
MF-FSMF020X-2PTC RESET FUSE 9V 200MA 0603 |
756 | - |
|
Datasheet | 0603 (1608 Metric), Concave | Multifuse®, MF-FSMF | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 40 A | 600 ms | 550 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.026" (0.65mm) | - |
|
MF-PSHT020KX-2PTC RESET FUSE 16V 200MA 0805 |
875 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 16V | 200 mA | 1 A | 40 A | 100 ms | 500 mOhms | 5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.047" (1.20mm) | - |
|
MF-FSML300/6-2PTC RESET FUSE 6V 3A 0603 |
397 | - |
|
Datasheet | 0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.055" (1.40mm) | - |
|
|
MF-MSMF160-2PTC RESET FUSE 8V 1.6A 1812 |
909 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 8V | 1.6 A | 2.8 A | 100 A | 2 s | 35 mOhms | 99 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
|
MF-MSMF150/12-2PTC RESET FUSE 12V 1.5A 1812 |
310 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | - | - | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

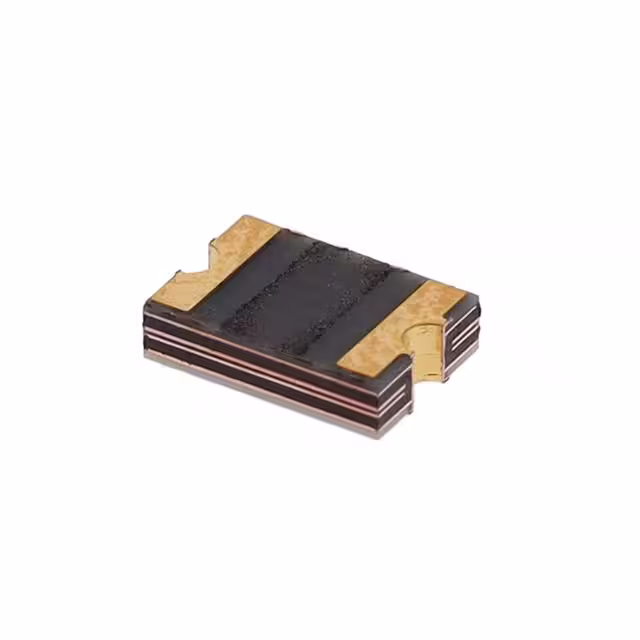

MF-MSMF075/33X-2PTC RESETTABL 0.75A 33V SMD 1812 |
176 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 33V | 800 mA | 1.5 A | 20 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
|
MF-R010PTC RESET FUSE 60V 100MA RADIAL |
239 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RX160/72-0PTC RESET FUSE 72V 1.6A RADIAL |
2,706 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about filtering, comparing and sourcing PTC Resettable Fuses components.
How can I narrow the PTC Resettable Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific PTC Resettable Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
