PTC Resettable Fuses
Use the filters and product table below to compare PTC Resettable Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-RHS500-0FUSE PTC RESET 5.0A 16V |
495 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHS | Bulk | Active | Polymeric | 16V | 5 A | 10 A | 100 A | 5.8 s | 0.0135 Ohms | 0.038 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.362" L x 0.118" W (9.20mm x 3.00mm) | 0.756" (19.20mm) | - | 0.201" (5.10mm) |
|
|
MF-RHS800-0FUSE PTC RESET 8.0A 16V |
469 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHS | Bulk | Active | Polymeric | 16V | 8 A | 16 A | 100 A | 8 s | 0.006 Ohms | 0.0145 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.504" L x 0.142" W (12.80mm x 3.60mm) | 0.972" (24.70mm) | - | 0.142" (3.60mm) |
|
|
MF-RHS600-0FUSE PTC RESET 6.0A 16V |
484 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHS | Bulk | Active | Polymeric | 16V | 6 A | 12 A | 100 A | 6.5 s | 0.009 Ohms | 0.0252 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.344" L x 0.118" W (8.75mm x 3.00mm) | 0.882" (22.40mm) | - | 0.201" (5.10mm) |
|
|
MF-RHS650-0FUSE PTC RESET 6.5A 16V |
500 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHS | Bulk | Active | Polymeric | 16V | 6.5 A | 13 A | 100 A | 6.5 s | 0.0095 Ohms | 0.0225 Ohms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.913" (23.20mm) | - | 0.201" (5.10mm) |
|
MF-LSMF185/24X-22920 RESETTABLE SMD PPTC 1.85/24 |
281 | - |
|
Datasheet | 2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 1.85 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
MF-USML230-2PTC RESET FUSE 6V 2.3A 1210 |
4,074 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.3 A | 4.6 A | 50 A | 3.5 s | 4.5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
MF-RX110-0-99PTC RESET FUSE 60V 1.1A RADIAL |
6,304 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX | Bulk | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|

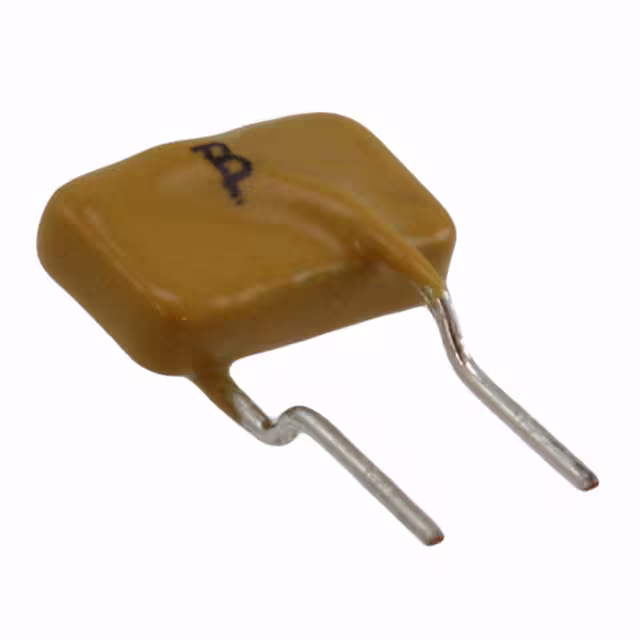

MF-RX018/250-0PTC RESET FUSE 60V 180MA RADIAL |
1,527 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 180 mA | - | 10 A | - | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" L x 0.181" W (11.00mm x 4.60mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
.JPG "MF-NSMF020-2")
|
MF-NSMF020-2PTC RESET FUSE 24V 200MA 1206 |
2,430 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 460 mA | 10 A | 600 ms | 600 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
MF-MSMF010-2PTC RESET FUSE 60V 100MA 1812 |
9,586 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 40 A | 1.5 s | 700 mOhms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
PTC Resettable Fuses FAQ
Common questions about filtering, comparing and sourcing PTC Resettable Fuses components.
How can I narrow the PTC Resettable Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific PTC Resettable Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
