PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFUF.020.2PTC RESET FUSE 30V 200MA 1210 |
4,347 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.093" W (3.22mm x 2.35mm) | - | 0.037" (0.95mm) | - |
|
MF-RX185/72-0-14PTC RESET FUSE 72V 1.85A RADIAL |
8,186 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
.jpg "MF-PSML200/6-2")
|
MF-PSML200/6-2PTC RESET FUSE 6V 2A 0805 |
5,185 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 2 s | 5 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
0ZRR0005FF2EPTC RESET FUSE 60V 50MA RADIAL |
5,160 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PTS08056V035PTC RESET FUSE 6V 350MA 0805 |
3,203 | - |
|
Datasheet | 0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 6V | 350 mA | 750 mA | 100 A | 0.1 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
PFMF.075.24.2PTC RESET FUSE 24V 750MA 1812 |
2,587 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
0ZRC0110FF1APTC RESET FUSE 90V 1.1A RADIAL |
10,374 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" L x 0.122" W (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
PTSA181224V110PTC RESET FUSE 1.1A 24V 1812 |
1,289 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 1.1 A | 2.2 A | 40 A | 300 ms | 40 mOhms | 260 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.051" (1.30mm) | - |
|

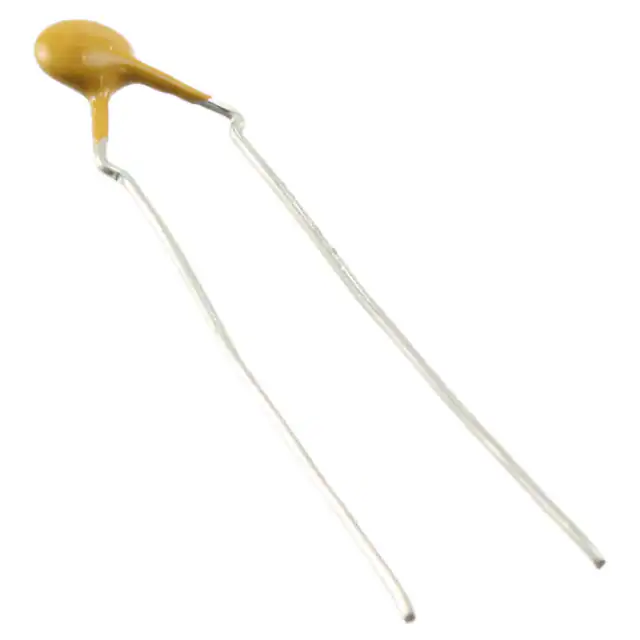

RXEF020S-2PTC RESET FUSE 72V 200MA RADIAL |
7,812 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.441" (11.20mm) | - | 0.199" (5.05mm) |
|
PTSLR08058V260PTC RESET FUSE 2.6A 8V 0805 |
6,795 | - |
|
Datasheet | 0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | - | 8V | 2.6 A | 5.2 A | 50 A | 5 s | 7 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.098" L x 0.063" W (2.50mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
|
PTSA181230V020PTC RESET FUSE 200MA 30V 1812 |
4,058 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 30V | 200 mA | 400 mA | 10 A | 20 ms | 600 mOhms | 5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
RUEF300-APPTC RESET FUSE 30V 3A RADIAL |
2,906 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.650" (16.50mm) | - | 0.199" (5.05mm) |
|
PFRA.025PTC RESET FUSE 60V 250MA RADIAL |
1,253 | - |
|
Datasheet | Radial, Disc | PFRA | Bulk | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RG400-0PTC RESET FUSE 16V 3A RADIAL |
1,221 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | AEC-Q200 | - | Through Hole | 0.390" L x 0.118" W (9.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|

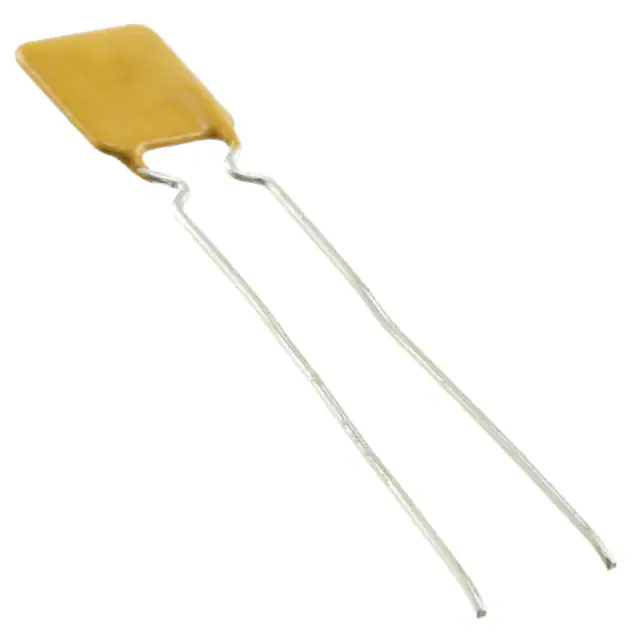

RGEF250-2PTC RESET FUSE 16V 2.5A RADIAL |
1,822 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 2.5 A | 4.7 A | 100 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
PTR016V0600-BKPTC RESET FUSE 16V 6A RADIAL |
1,029 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 6 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.122" W (10.70mm x 3.10mm) | 0.673" (17.10mm) | - | 0.197" (5.00mm) |
|
MF-R025-2PTC RESET FUSE 60V 250MA RADIAL |
9,102 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RX020/72-0PTC RESET FUSE 72V 200MA RADIAL |
1,460 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
PFMF.200.2PTC RESET FUSE 8V 2A 1812 |
1,249 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 4 A | 40 A | 3 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

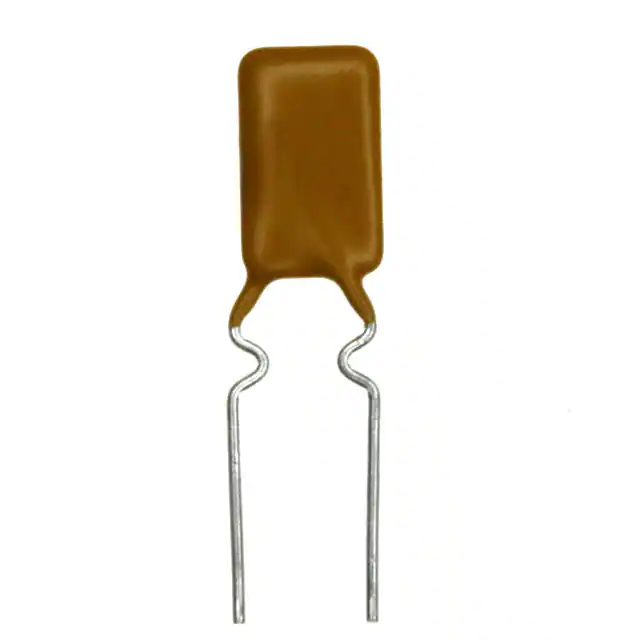

RUEF110-APPTC RESET FUSE 30V 1.1A RADIAL |
7,144 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 100 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.199" (5.05mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
