PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF160K-2PTC RESET FUSE 72V 1.6A RADIAL |
6,880 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
PTSLR12106V750PTC RESET FUSE 7.5A 6V 1210 |
3,441 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7.5 A | 15 A | 50 A | 5 s | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR12106V700PTC RESET FUSE 7A 6V 1210 |
41,403 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | - | 6V | 7 A | 14 A | 50 A | 5 s | 1 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.135" L x 0.110" W (3.43mm x 2.80mm) | - | 0.039" (1.00mm) | - |
|
MF-RM008/240-2PTC RESET FUSE 240V 80MA RADIAL |
13,467 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-S420PTC RESET FUSE 30V 4.2A STRAP |
5,884 | - |
|
Datasheet | Strap | Multifuse®, MF-S | Bulk | Active | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|

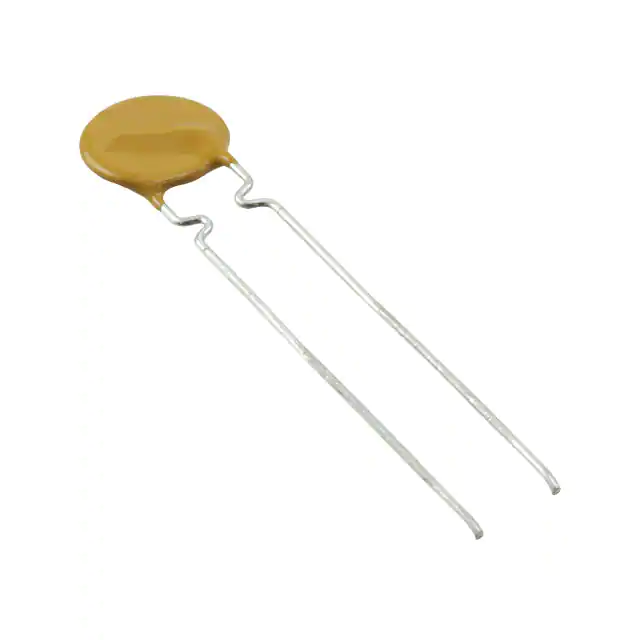

RHEF200-2PTC RESET FUSE 16V 2A RADIAL |
4,960 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 4.3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.567" (14.40mm) | - | 0.199" (5.05mm) |
,-Concave.jpg "0ZCN0110FF2C")
|
0ZCN0110FF2CPTC RESET FUSE 15V 1.1A 2016 |
3,898 | - |
|
Datasheet | 2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 15V | 1.1 A | 2.2 A | 100 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.028" (0.70mm) | - |
|

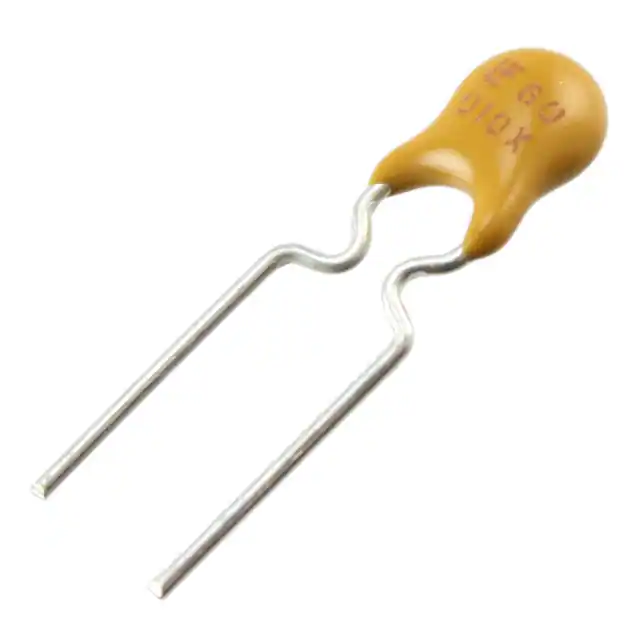

60R010XPRPTC RESET FUSE 60V 100MA RADIAL |
3,270 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RM008/240-0PTC RESET FUSE 240V 80MA RADIAL |
2,109 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-R090-0-9PTC RESET FUSE 30V 900MA RADIAL |
1,472 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
MF-RX025/72-0PTC RESET FUSE 72V 250MA RADIAL |
1,326 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-RM016/240-2PTC RESET FUSE 240V 160MA RADIAL |
7,804 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
, Concave.jpg "FEMTOSMDC012F-2")
|
FEMTOSMDC012F-2PTC RESET FUSE 9V 120MA 0603 |
4,465 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PolySwitch®, femtoSMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 120 mA | 300 mA | 40 A | 100 ms | 1.1 Ohms | 5.8 Ohms | - | - | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
SMDC075F-2PTC RESET FUSE 33V 750MA 2920 |
4,384 | - |
|
Datasheet | 2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 33V | 750 mA | 1.5 A | 40 A | 300 ms | 100 mOhms | 610 mOhms | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|
MF-RM033/240-2PTC RESET FUSE 240V 330MA RADIAL |
4,373 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.787" (20.00mm) | - | 0.114" (2.90mm) |
|
PICOSMDC012S-2PTC RESET FUSE 15V 120MA 0805 |
3,197 | - |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch®, picoSMD | Tape & Reel (TR) | Active | Polymeric | 15V | 120 mA | 300 mA | 100 A | 100 ms | 1.5 Ohms | 9 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
ASMD075F-2PTC RESET FUSE 30V 600MA 2SMD |
2,120 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 600 mA | 1.48 A | 40 A | 20 s | 290 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
0ZRF0008FF1EPTC RESET FUSE 60V 80MA RADIAL |
1,750 | - |
|
Datasheet | Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 80 mA | 240 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.288" L x 0.181" W (5.80mm x 4.60mm) | 0.378" (9.60mm) | - | 0.197" (5.00mm) |
|
MF-RHT400-2PTC RESET FUSE 16V 4A RADIAL |
13,400 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7.5 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
CMF-RL50A-0PTC RESET FUSE 220V 50MA RADIAL |
8,400 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 50 mA | 100 mA | 3 A | 100 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.295" L x 0.220" W (7.50mm x 5.60mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
