PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60R160XMRPTC RESET FUSE 60V 1.6A RADIAL |
835 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
PTSLR18126V300PTC RESET FUSE 6V 3A 1812 |
2,463 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSLR1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6.2 A | 50 A | 5 s | 3 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
B59960C0080A070PTC RESET FUSE 80V 130MA RADIAL |
756 | - |
|
Datasheet | Radial, Disc | B59960 | Bulk | Active | Ceramic | 80V | 130 mA | 265 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59873C0120A070PTC RESET FUSE 265V 70MA RADIAL |
5,392 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59975C0160A070PTC RESET FUSE 20V 550MA RADIAL |
3,179 | - |
|
Datasheet | Radial, Disc | B59975 | Bulk | Active | Ceramic | 20V | 550 mA | 1.1 A | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59872C0120A070PTC RESET FUSE 265V 80MA RADIAL |
1,647 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59874C0120A070PTC RESET FUSE 265V 60MA RADIAL |
1,063 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59960C0120A070PTC RESET FUSE 80V 250MA RADIAL |
428 | - |
|
Datasheet | Radial, Disc | B59960 | Bulk | Active | Ceramic | 80V | 250 mA | 500 mA | 4.3 A | - | - | - | 5.6 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
B59875C0120A070PTC RESET FUSE 265V 55MA RADIAL |
189 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|

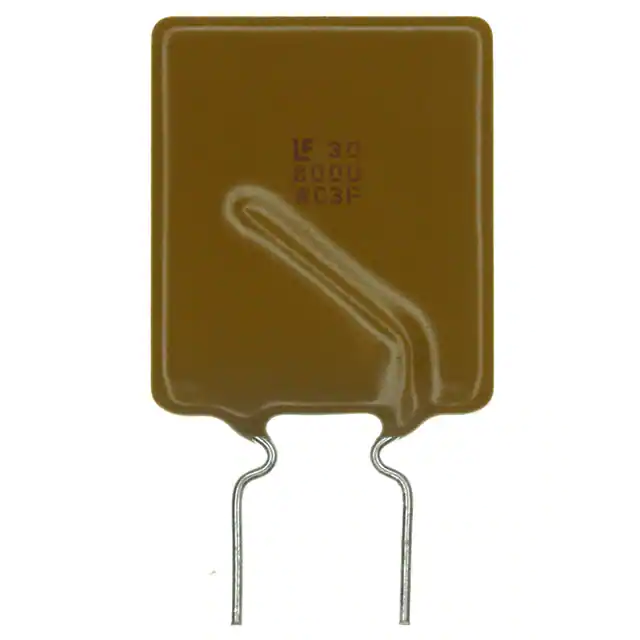

30R800UHPTC RESET FUSE 30V 8A RADIAL |
1,244 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.224" (31.10mm) | - | 0.402" (10.20mm) |
|
AHRL1000PTC RESET FUSE 10A 16V RAD |
250 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 10 A | 20 A | 100 A | 10 s | 4.2 mOhms | 6.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.567" L x 0.142" W (14.40mm x 3.60mm) | 0.882" (22.40mm) | - | 0.400" (10.15mm) |
|
|
B59860C0130A070PTC RESET FUSE 265V 140MA RADIAL |
975 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 140 mA | 230 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
TSV250-130F-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
1,850 | - |
|
Datasheet | 2-SMD | PolySwitch®, TSV250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
B59850C0120A070PTC RESET FUSE 265V 200MA RADIAL |
1,532 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
LVR100S-240-2PTC RESET FUSE 240V 1A RADIAL |
1,130 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|
1210L200SLYRPTC RESET FUSE 6V 2A 1210 |
13,112 | - |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 3 s | 5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
B59774B0115A070PTC RESET FUSE 550V RADIAL DISC |
990 | - |
|
Datasheet | Radial, Disc | B59774 | Bulk | Active | Ceramic | 550V | - | 32 mA | 1 A | 2 s | - | - | 1.1 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
B59772B0120A070PTC RESET FUSE 420V RADIAL DISC |
893 | - |
|
Datasheet | Radial, Disc | B59772 | Bulk | Active | Ceramic | 420V | - | 86 mA | 1.4 A | 3 s | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
B59315P1080A062THERMISTOR PTC 25% 4032 |
767 | - |
|
Datasheet | 4032 (1080 Metric) | B59315 | Tape & Reel (TR) | Active | Ceramic | 80V | 80 mA | 165 mA | 1.6 A | - | 9.6 Ohms | 16 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
|
B59955C0120A070PTC RESET FUSE 30V 850MA RADIAL |
1,606 | - |
|
Datasheet | Radial, Disc | B59955 | Bulk | Active | Ceramic | 30V | 850 mA | 1.7 A | 5.5 A | - | - | - | 800 mOhms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
