PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
FSMD020-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,500	-	RFQ	Datasheet	1812 (4532 Metric), Concave	FSMD1812	Tape & Reel (TR)	Active	-	30V	200 mA	400 mA	100 A	20 ms	800 mOhms	5 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.90mm)	-
FSMD020-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	3,700	-	RFQ	Datasheet	0805 (2012 Metric), Concave	FSMD0805	Tape & Reel (TR)	Active	-	9V	200 mA	500 mA	100 A	20 ms	400 mOhms	3.5 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.039" (1.00mm)	-
FSMD075-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	2,950	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	8V	750 mA	1.5 A	100 A	200 ms	90 mOhms	290 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.049" (1.25mm)	-
FSMD010-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,950	-	RFQ	Datasheet	1812 (4532 Metric), Concave	FSMD1812	Tape & Reel (TR)	Active	-	60V	100 mA	300 mA	100 A	20 ms	1.6 Ohms	15 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.90mm)	-
FSMD160-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,400	-	RFQ	Datasheet	1812 (4532 Metric), Concave	FSMD1812	Tape & Reel (TR)	Active	-	8V	1.6 A	3.2 A	100 A	500 ms	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.90mm)	-
MPTS2920L050R PTC RESET FUSE 60V 0.5A 2920 Meritek	16,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	MPTS	Tape & Reel (TR)	Active	Polymeric	60V	500 mA	1 A	100 A	4 s	300 mOhms	1.4 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.045" (1.15mm)	-
FSMD050-24-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	5,600	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	24V	500 mA	1 A	100 A	100 ms	150 mOhms	750 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.047" (1.20mm)	-
FSMD010-24-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	3,840	-	RFQ	Datasheet	0805 (2012 Metric), Concave	FSMD0805	Tape & Reel (TR)	Active	-	24V	100 mA	300 mA	100 A	1.5 s	700 mOhms	6 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.039" (1.00mm)	-
FSMD075-0805R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	2,950	-	RFQ	Datasheet	0805 (2012 Metric), Concave	FSMD0805	Tape & Reel (TR)	Active	-	6V	750 mA	1.5 A	100 A	200 ms	90 mOhms	350 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.049" (1.25mm)	-
FSMD035-30-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	2,950	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	30V	350 mA	750 mA	100 A	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.051" (1.30mm)	-
FSMD025-24-1206-R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	2,850	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	24V	250 mA	500 mA	100 A	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.030" (0.75mm)	-
FSMD075-16-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	2,800	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	16V	750 mA	1.5 A	100 A	200 ms	90 mOhms	290 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.049" (1.25mm)	-
FSMD050-9-0805R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	2,550	-	RFQ	Datasheet	0805 (2012 Metric), Concave	FSMD0805	Tape & Reel (TR)	Active	-	9V	500 mA	1 A	100 A	100 ms	150 mOhms	850 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.049" (1.25mm)	-
MPTS2920L150 PTC RESET FUSE 33V 1.5A 2920 Meritek	2,000	-	RFQ	Datasheet	2920 (7351 Metric)	MPTS	Tape & Reel (TR)	Active	Polymeric	33V	1.5 A	3 A	100 A	2 s	50 mOhms	230 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.039" (1.00mm)	-
FSMD025-1206-R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	1,750	-	RFQ	Datasheet	1206 (3216 Metric), Concave	FSMD1206	Tape & Reel (TR)	Active	-	16V	250 mA	500 mA	100 A	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.030" (0.75mm)	-
FSMD110-33R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,450	-	RFQ	Datasheet	1812 (4532 Metric), Concave	FSMD1812	Tape & Reel (TR)	Active	-	33V	1.1 A	2.2 A	100 A	500 ms	60 mOhms	200 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.051" (1.30mm)	-

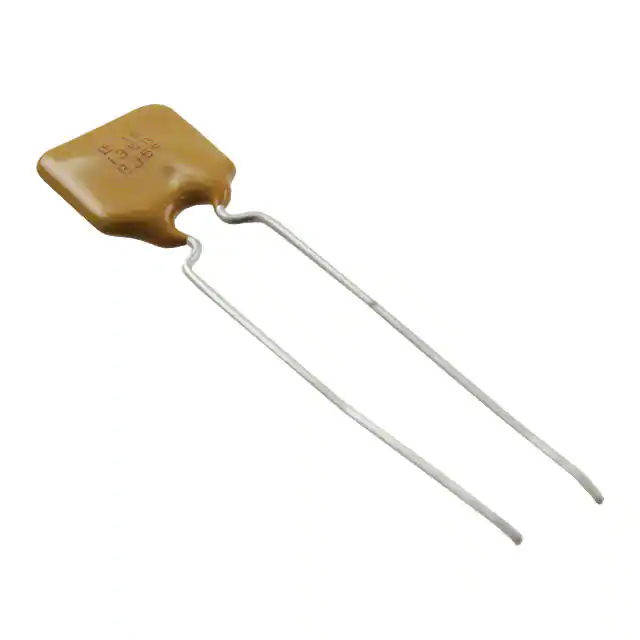

16R135BPR PTC RESET FUSE 16V 1.35A RADIAL Littelfuse Inc.	2,000	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, USBR	Tape & Box (TB)	Obsolete	Polymeric	16V	1.35 A	2.7 A	40 A	4.5 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.350" L x 0.118" W (8.90mm x 3.00mm)	0.532" (13.50mm)	-	0.201" (5.10mm)
FRU090-30F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	1,990	-	RFQ	Datasheet	Radial, Disc	FRU	Bulk	Active	-	30V	900 mA	1.8 A	100 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" L x 0.118" W (7.40mm x 3.00mm)	0.480" (12.20mm)	-	0.201" (5.10mm)
FSMD100-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	2,900	-	RFQ	Datasheet	2920 (7351 Metric), Concave	FSMD2920	Tape & Reel (TR)	Active	-	33V	1.1 A	2.2 A	100 A	500 ms	90 mOhms	410 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.039" (1.00mm)	-
FSMD030-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	1,950	-	RFQ	Datasheet	2920 (7351 Metric), Concave	FSMD2920	Tape & Reel (TR)	Active	-	60V	300 mA	600 mA	100 A	3 s	1 Ohms	4.8 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.045" (1.15mm)	-

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
