Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X-1569TXFMR GATE DRIVE 1500VDC ISO |
948 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.01mm x 8.63mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

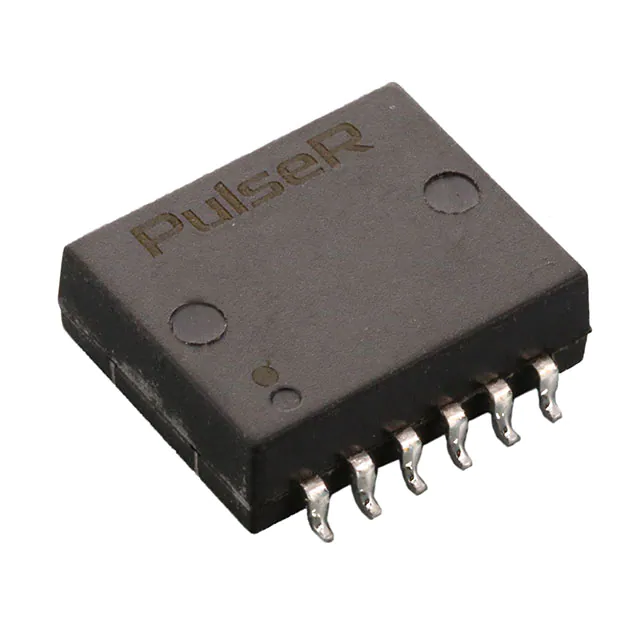

100B-1001XNLEXTMP XFMR 100BT SMG COM RPB |
123 | - |
|
Datasheet | - | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.470" W (14.81mm x 11.94mm) | 0.202" (5.13mm) | - | - | - |
|
10GB-6014NLTLAN MODULE XFRMR 10GBASE-T SMD |
194 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|
10GB-6010TLAN MODULE XFRMR 10GBASE-T SMD |
404 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|
Q1553-2TRANSFORMER PULSE LVL:M PKG:A |
2,364 | - |
|
Datasheet | - | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1.4CT:1CT, 2CT:1CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
_R1022NL(T)_iNRCORE_Product-Image.jpg "R1022NL")
|
R1022NLXFRMR ETHERNET MOD IND 10/100B-T |
233 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg "R1001NL")
|
R1001NLXFRMR ETHERNET MOD IND 10/100B-T |
192 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
_R5012NL(T)_iNRCORE_Product-Image.jpg "R5012NL")
|
R5012NLXFRMR ETHERNET MOD IND 1000B-T |
210 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.605" L x 0.528" W (15.37mm x 13.41mm) | 0.251" (6.38mm) | -40°C ~ 85°C | - | - |
|
|
R5001NLXFRMR ETHERNET MOD IND 1000B-T |
198 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
_iNRCORE_Product-Image.jpg "R4009NL")
|

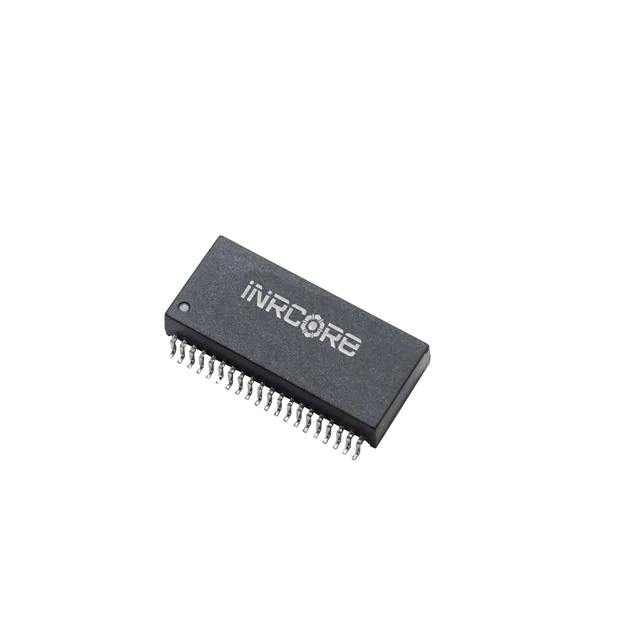

R4009NLXFRMR ETHERNET MOD IND 10/100B-T |
135 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 1.080" L x 0.480" W (27.43mm x 12.19mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
