Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALANC10001-CDB3DTLAN SGL XFMR 8PIN |
2,809 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 200µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) | -40°C ~ 85°C | - | - |
|
ALANS100X1-2F00ETLAN SGL 100B XFMR&CMC 16PIN |
3,688 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|
|
ALANS100X1-2F10DTLAN SGL 100B XFMR&CMC 16PIN |
1,620 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
ALANS100X1-2F82DTLAN SGL 100B XFMR&CMC&AUTO 12PIN |
2,616 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

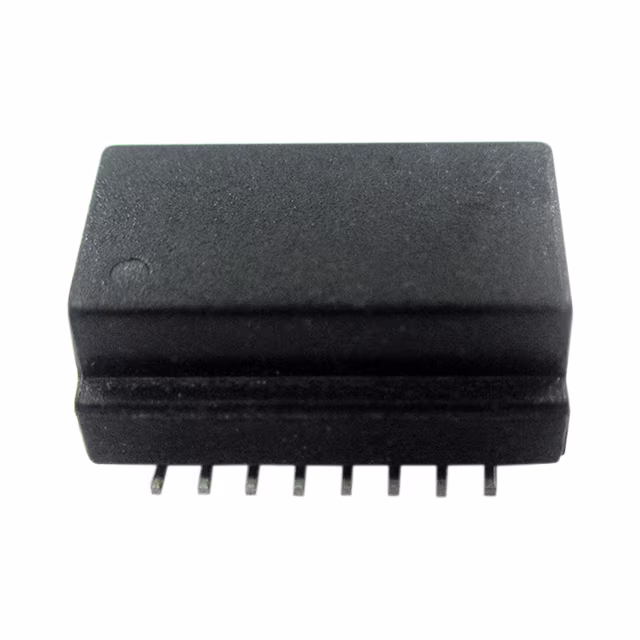

APT-106LAN XFRMR 10/100 1PORT EXT-TEMP |
2,763 | - |
|
Datasheet | APT-106 | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
ALANS10001-3J11DTLAN SGL 1000B XFMR&CMC 24PIN |
2,943 | - |
|
Datasheet | ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|
|
ALANS10001-3J11JTLAN SGL 1000B XFMR&CMC 24PIN |
3,460 | - |
|
Datasheet | ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | -40°C ~ 105°C | - | - |
|
|
ALANL100X1-EFD2ET10/100BASE-TX LAN XFMR |
3,472 | - |
|
Datasheet | ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | 0°C ~ 70°C | - | - |
|
|
ALANL100X1-EF10DT10/100BASE-TX LAN XFMR |
1,982 | - |
|
Datasheet | ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 85°C | - | - |
|
|
ALANL100X1-DE12JT10/100BASE-TX LAN XFMR |
2,491 | - |
|
Datasheet | ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 105°C | - | - |
