Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HXE2017HLTRANSF ESS BMS 1500V 6.0KV |
4,519 | - |
|
Datasheet | HXE20xxHL | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.733" L x 0.492" W (18.63mm x 12.50mm) | 0.344" (8.74mm) | -40°C ~ 125°C | - | - |
|
PA0769NLTPULSE XFMR 89.2UH |
2,338 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 89.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA1477NLTPULSE XFMR 38.3UH |
2,643 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 38.3µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2114NLPULSE XFMR 164UH |
1,202 | - |
|
Datasheet | - | Tray | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2114NLTPULSE XFMR 164UH |
1,080 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA2531NLPULSE XFMR 4.5UH |
1,302 | - |
|

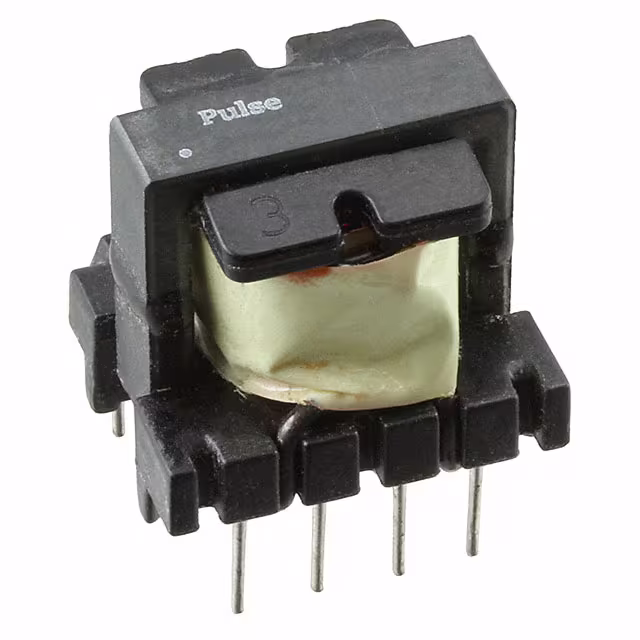

Datasheet | - | Tray | Active | - | 4.5µH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
|
PA2053NLTPULSE XFMR 292UH |
4,171 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 292µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
H1138NLTXFRMR MODULE 1PORT 1:1 10/100 |
3,949 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
QVP2014RS2MDL 5G SINGLE PORT N/A |
3,734 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
QVP6014RBMMDL 5G 1 PORT POE 60W |
4,944 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
