Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HXB5007HLTMOD SIN 1GP 1:1 EXT. HF SMD |
265 | - |
|
Datasheet | HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.394" W (15.10mm x 10.00mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
HX1198NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
6,935 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H2019NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
1,388 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|
HX2326FNLTPULSE XFMR 1CT:1CT TX/RX |
2,699 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
HX2019NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
1,599 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HM2103NLTXFMR CMC MODULE AECQ BATT MNGT |
3,269 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
HX1198NLMODULE XFRMR SGL ETHR LAN 16SOIC |
686 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX1098NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,106 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.158" (4.01mm) | -40°C ~ 85°C | - | - |
|

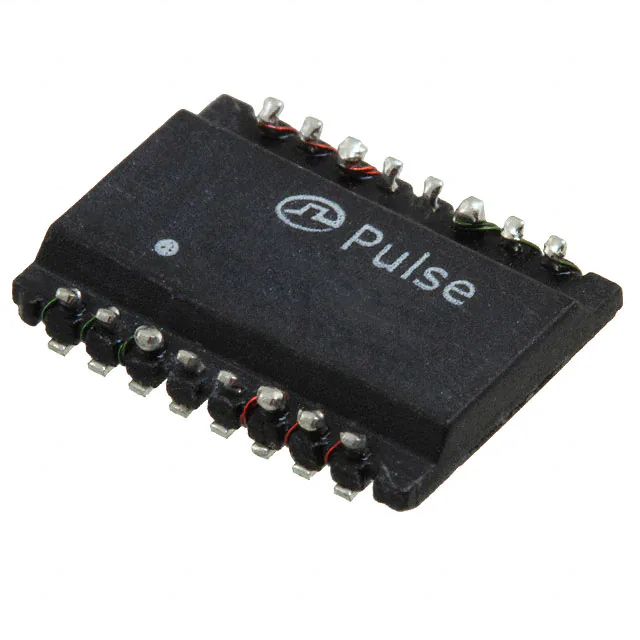

H0013FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,854 | - |
|
Datasheet | - | Tube | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.488" L x 0.365" W (12.40mm x 9.27mm) | 0.073" (1.85mm) | 0°C ~ 70°C | - | - |
|

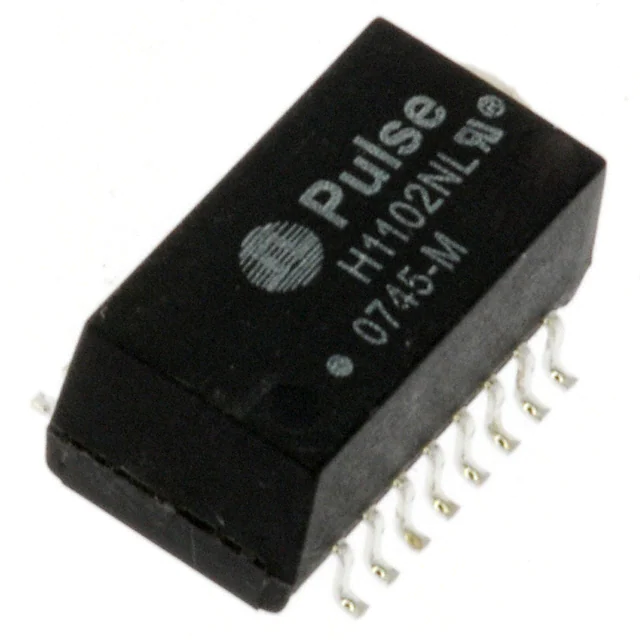

H1102NLMODULE XFRMR SGL ETHR LAN 16SOIC |
8,676 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
