Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1283NLPULSE XFMR 155UH |
359 | - |
|
Datasheet | - | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
H1197FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
597 | - |
|

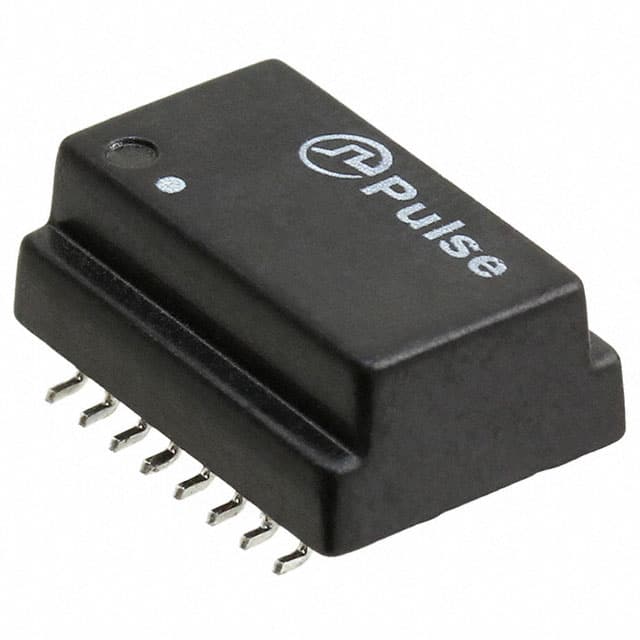

Datasheet | - | Tube | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HB6601NLMOD DUAL 1GP 1:1 EXT HF 48P |
864 | - |
|
Datasheet | HB6 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
PA2669NLPULSE XFMR 17.3UH |
740 | - |
|
Datasheet | - | Tray | Active | - | 17.3µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
HB5609NLMOD DUAL 1GD 1:1 HF 36P |
1,120 | - |
|
Datasheet | HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5608NLMOD DUAL 1GD 1:1 HF 36P |
1,120 | - |
|
Datasheet | HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5605NLMOD DUAL 1GD 1:1 HF 48P |
864 | - |
|
Datasheet | HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
HB5606NLMOD DUAL 1GD 1:1 HF 48P |
864 | - |
|
Datasheet | HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
PA1309NLTPULSE XFMR 16.4UH |
445 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2456NLPULSE XFMR 24UH |
313 | - |
|
Datasheet | - | Tray | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
