Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2669NLTPULSE XFMR 17.3UH |
2,272 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 17.3µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2725NLPULSE XFMR 139.5UH |
4,194 | - |
|
Datasheet | - | Tray | Active | - | 139.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA1769NLPULSE XFMR 6.7UH |
3,123 | - |
|
Datasheet | - | Tray | Active | - | 6.7µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

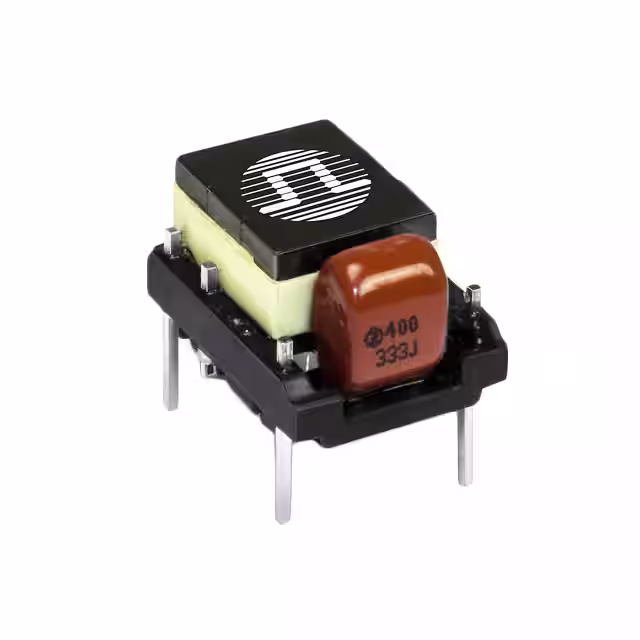

B8891NLPULSE XFMR XDSL 600 OHM NPB |
4,801 | - |
|
Datasheet | SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.701" L x 0.492" W (17.80mm x 12.50mm) | 0.512" (13.00mm) | - | - | - |
|
|
AVP2014RMDL SMD 2.5G SINGLE PORT N/A |
3,684 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LG1P109NAM LFMDL 1G DIP SINGLE PORT N/A |
3,139 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
|
PA1279NLPULSE XFMR 310UH |
4,019 | - |
|
Datasheet | - | Tray | Active | - | 310µH | - | - | Surface Mount | 0.421" L x 0.525" W (10.70mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
|
PA1281NLXFMR FLYBACK EP7 SM 8 PIN NPB |
3,900 | - |
|
Datasheet | PA1281NL | Tray | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | - | Surface Mount | 0.420" L x 0.370" W (10.67mm x 9.40mm) | 0.360" (9.14mm) | -40°C ~ 130°C | - | - |
|
PE-65723NLTTRANSFORMER 2000VRMS 75UH SMD |
1,293 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 75µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
PA1861NLTPULSE XFMR 115.5UH |
2,887 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 115.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
