Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IT248XFRMR PULSE 2:1 SGL 17MH .25A |
893 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 17mH | - | 2:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
IT234XFRMR PULSE 3:1:1 DL 17MH .25A |
237 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 17mH | - | 3:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
|
IT260XFRMR PULSE 3:1 SGL 12MH .1A |
266 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 12mH | - | 3:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
|
IT246XFRMR PULSE 2:1 SGL 7MH .1A |
874 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 7mH | - | 2:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
|
IT233XFRMR PULSE 1:1:1 DL 3MH .25A |
100 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 3mH | - | 1:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
IT313XFRMR PULSE 1:1:1 DL 3MH 1A |
3,534 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 3mH | - | 1:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
|
|
IT143XFRMR PULSE 1:1:1 DL 15MH .025A |
1,519 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 15mH | - | 1:1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
|
IT237XFRMR PULSE 1:1 SGL 25MH .25A |
3,244 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 25mH | - | 1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
|
IT314XFRMR PULSE 3:1:1 DUAL 35MH 1A |
2,813 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 35mH | - | 3:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
|
|

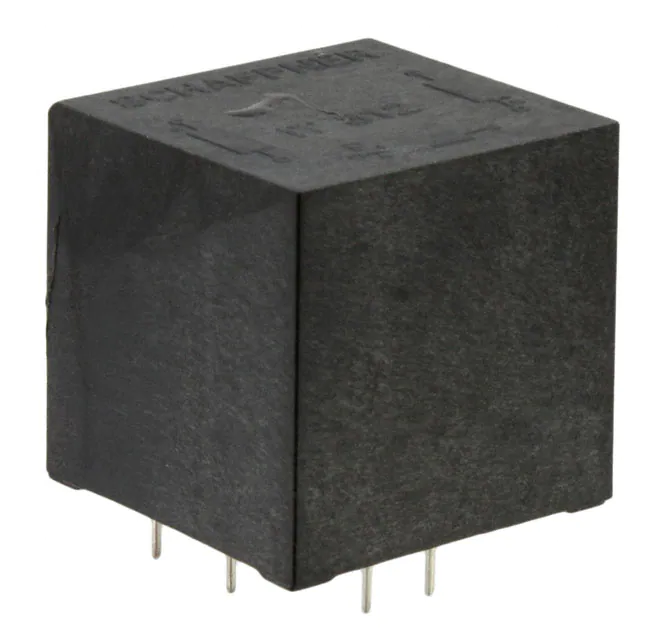

IT312XFRMR PULSE 1:1:1 DL 21MH .25A |
2,412 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 21mH | - | 1:1:1 | Through Hole | 1.004" L x 1.004" W (25.50mm x 25.50mm) | 0.992" (25.20mm) | -25°C ~ 70°C | - | - |
