Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLA-6T404XFRMR FOR BCM5208,5203 CS 40SOP |
3,600 | - |
|
Datasheet | TLA | Tray | Active | LAN | 350µH | - | 1CT:1CT, 1:1 | Surface Mount | 1.020" L x 0.480" W (25.90mm x 12.20mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
TLA-6T406XFRMR LAN 1CT:1CT 350UH 40SOP |
3,900 | - |
|
Datasheet | TLA | Tray | Active | LAN | 350µH | - | 1CT:1CT | Surface Mount | 1.020" L x 0.480" W (25.90mm x 12.20mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
TLA-7T201LF-TTRANSFORMER LAN 10/100/1000 T |
1,778 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.630" L x 0.335" W (16.00mm x 8.50mm) | 0.087" (2.20mm) | 0°C ~ 70°C | - | - |
|
TLA-6T103LF-TTRANSFORMER LAN 10/100 TX ATM |
1,026 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.012" L x 0.366" W (25.70mm x 9.30mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|

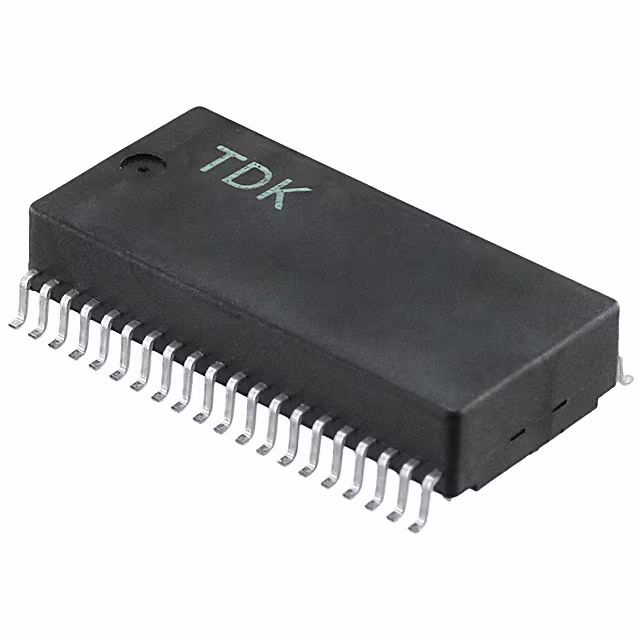

TLA-6T406-TTRANSFORMER LAN 10/100 TX |
2,456 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.020" L x 0.480" W (25.90mm x 12.20mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
TLA-7T101LF-TTRANSFORMER LAN 10/100/1000 T |
3,151 | - |
|
Datasheet | TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.623" L x 0.265" W (15.82mm x 6.74mm) | 0.232" (5.90mm) | -40°C ~ 85°C | - | - |
|
|
TLA-6T122LFXFRMR FOR QS6612 CHIP SET 16SOP |
2,471 | - |
|
Datasheet | TLA | Tray | Active | LAN | 350µH | - | 1.25CT:1CT, 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
TLA-3M601-RSINTEGRATED FILTER MODULE 10-SIP |
2,846 | - |
|
Datasheet | TLA | - | Obsolete | LAN | - | - | - | Through Hole | 1.102" L x 0.236" W (28.00mm x 6.00mm) | 0.429" (10.90mm) | 0°C ~ 70°C | - | - |
|
|
TLA-3M103LFINTEGRATED FILTER MODULE 16-SOP |
3,006 | - |
|
Datasheet | TLA | Tray | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 1.012" L x 0.374" W (25.70mm x 9.50mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
|
TLA-3T112LFXFRMR FOR CS8900A CHIP SET 16SOP |
1,493 | - |
|
Datasheet | TLA | Tray | Obsolete | LAN | 130µH | - | 1CT:1CT, 1CT:2.5CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
