Pulse Transformers
Browse available Pulse Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHSC-1607CI10/100 BASE-T SINGLE PO+C5:C57RT |
3,615 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.248" (6.30mm) | -40°C ~ 85°C | - | - |
|
AH1654CI10/100 BASE-T LAN FILTER |
3,823 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.224" (5.70mm) | -40°C ~ 85°C | - | - |
|
AGSC-2401PS10/100/1000 BASE-T GIGABIT SINGL |
3,271 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.433" L x 0.280" W (11.00mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
AGSC-4807PPI100/1000 BASE-T GIGABIT POE++ LA |
3,888 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|

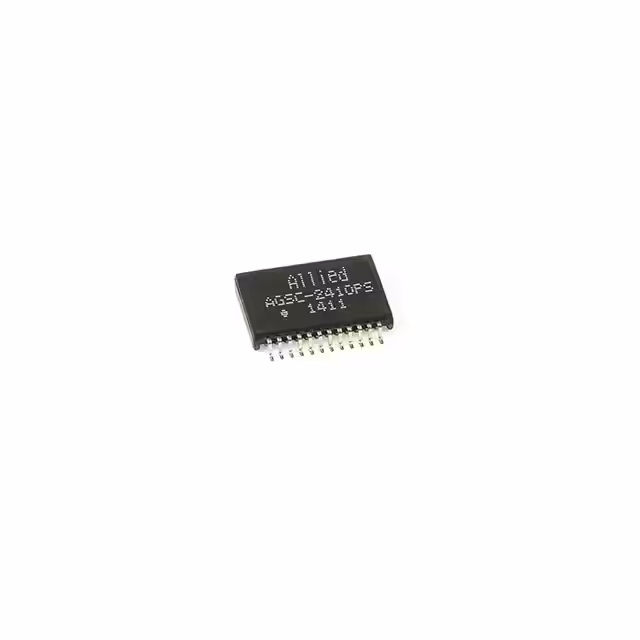

AGSC-2410PS100/1000 BASE-T SINGLE PORT POE |
4,624 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.480" W (17.80mm x 12.20mm) | 0.118" (3.00mm) | 0°C ~ 70°C | - | - |
|
MTBAUGDT250102TRANSFORMER, GATE DRIVE 5MM, 250 |
2,456 | - |
|
Datasheet | MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
HX7028NLMDL SIN 10G 1:1 GEN2 SM TU |
1,411 | - |
|
Datasheet | HX7028NL | Tube | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
AGSC-2401I100/1000 Base T Gigabit LAN |
2,689 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
S558-10GB-02VLAN MAGNETIC SMD |
4,210 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | HDBase-T | - | - | 1CT:1CT | Surface Mount | 0.610" L x 0.480" W (15.49mm x 12.19mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
AGSC-2429PI100/1000 Base-T Single Port PoE+ |
3,982 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1CT | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
AGSC-2417PI100/1000 Base T Gigabit PoE Plus |
2,282 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1CT | Surface Mount | 0.717" L x 0.478" W (18.20mm x 12.15mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|
AHSC-4400I10/100 Base T LAN Filter Module |
2,464 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
HC1002NLMODULE TRANSFORMER |
4,476 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA0808.004NLTTRANSFORMER |
1,990 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA4439NLTRANSFORMER |
3,519 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA0624NLTRANSFORMER |
2,627 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA4577NLTRANSFORMER |
1,576 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA0651NLTRANSFORMER |
3,002 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA4620NLTRANSFORMER |
1,284 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
PA2720NLTTRANSFORMER |
4,412 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
Pulse Transformers FAQ
Common questions about selecting, comparing and sourcing Pulse Transformers components through Winsun (HK) Electronics.
What should I check when selecting Pulse Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Pulse Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Pulse Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Pulse Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
