Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760301301XFRMR GATE DRIVE SMD |
780 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 1:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
760301106XFRMR GATE DRIVE 1:1 SMD |
2,744 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 370µH | - | 1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
749020112BTRANSFORMER LAN 10/100/1000 SMD |
2,012 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.364" W (17.85mm x 9.25mm) | 0.094" (2.39mm) | -40°C ~ 105°C | - | - |
|
|
7490240142WE-LAN 10/100/1000 BASE-T SMT TR |
260 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.719" L x 0.600" W (18.25mm x 15.24mm) | - | -40°C ~ 85°C | - | - |
|

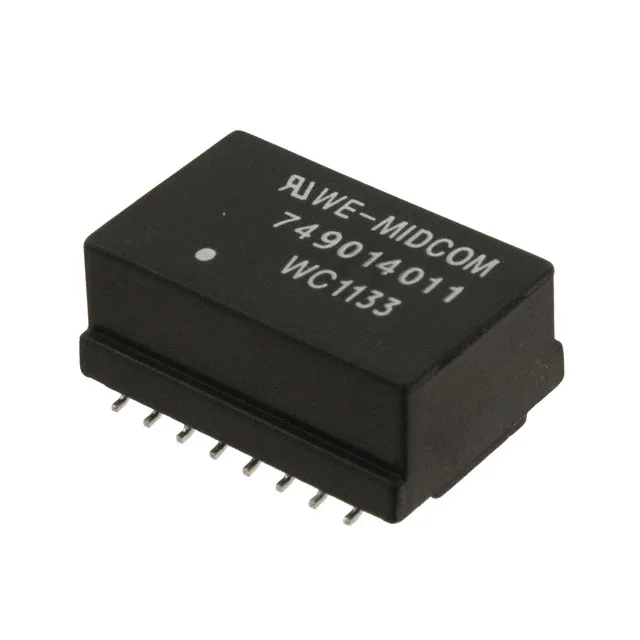

749014012TRANSFORMER WE-LAN MED 10/100BT |
1,370 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.967" L x 0.669" W (24.55mm x 17.00mm) | 0.427" (10.85mm) | 0°C ~ 70°C | - | - |
|
749050017TRANSFORMER LAN |
848 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
749052050TRANSFORMER LAN |
223 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 180µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | 0°C ~ 70°C | - | - |
|
|
7490140112TRANSFORMER WE-LAN MED 10/100BT |
1,330 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.967" L x 0.669" W (24.55mm x 17.00mm) | 0.427" (10.85mm) | -40°C ~ 85°C | - | - |
|
749020022AXFRMR LAN 1000 BASE-T 1:1 350UH |
814 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.091" L x 0.295" W (27.70mm x 7.50mm) | 0.335" (8.50mm) | -40°C ~ 85°C | - | - |
|
750313723PWR XFMR 1:1 GATE-DRIVE 700UH |
12,569 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
