Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S558-5999-AC-FMODULE XFRMR LAN GIGABIT 24P SMD |
457 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

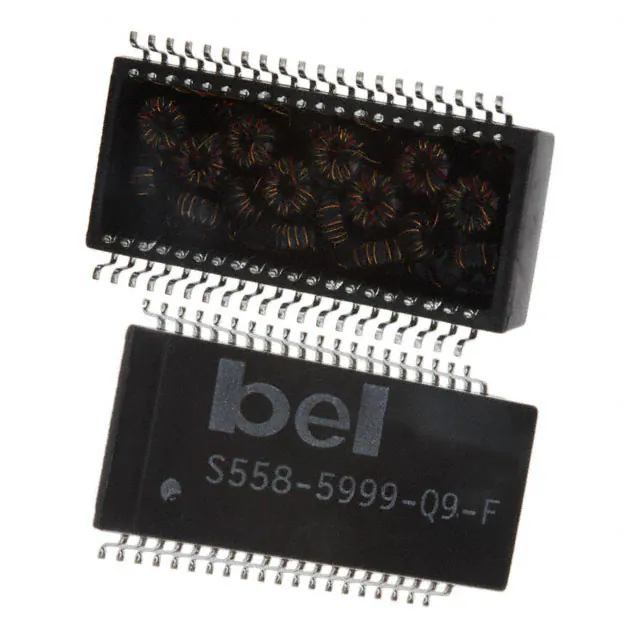

S558-5999-Q9-FMODULE XFRMR LAN 10/100B-TX SMD |
853 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

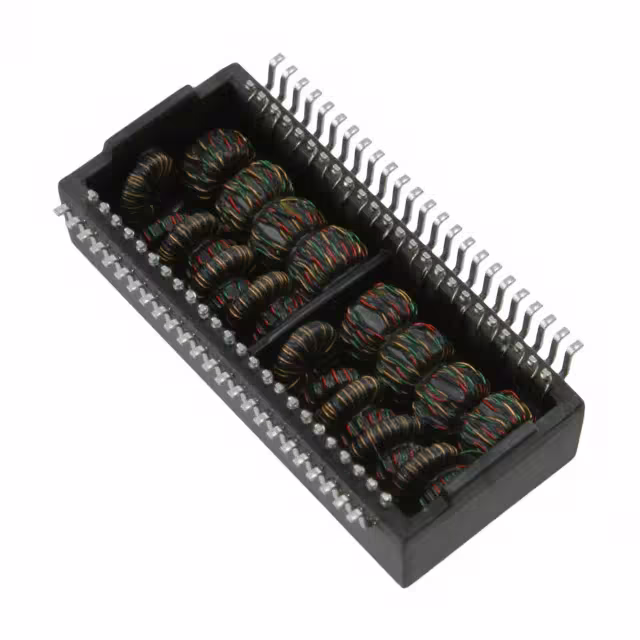

S558-5999-Q2-FMODULE XFRMR LAN GIGABIT 48P SMD |
884 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-Q3-FMODULE XFRMR LAN GIGABIT 48P SMD |
2,004 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
S558-5999-J1-FMODULE XFRMR LAN 10/100B-TX SMD |
7,019 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-W2-FMODULE XFRMR LAN 10/100B-TX SMD |
4,143 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

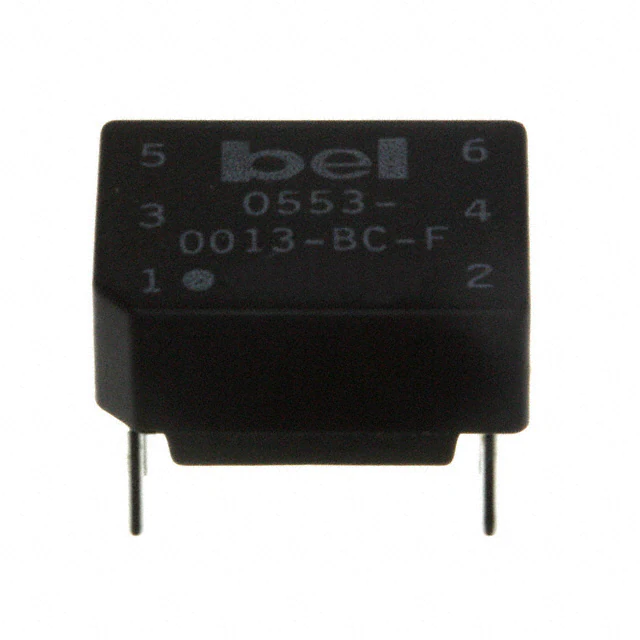

0553-0013-BC-FMODULE XFRMR LAN T1/E1 PCB |
841 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|

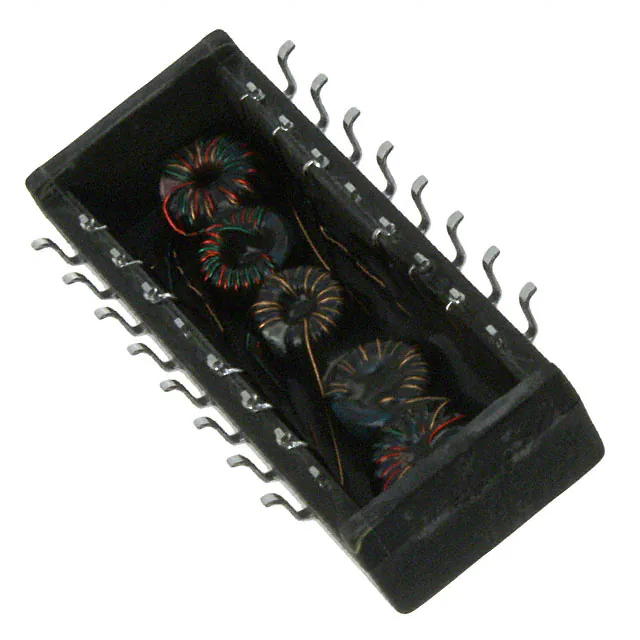

S558-5999-46-FMODULE XFRMR LAN 10/100B-TX SMD |
907 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 420µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-T3-FXFRMR MODULE LAN GIGABIT 24P SMD |
1,102 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
S558-5999-AM-FXFRMR MODULE LAN GIGABT MINIPCI |
2,444 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
