Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FST10045DIODE MOD SCHOT 45V 100A TO249AB |
9,197 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST10060DIODE MOD SCHOT 60V 100A TO249AB |
3,666 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST10080DIODE MOD SCHOT 80V 100A TO249AB |
4,738 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 100A | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST100150DIODE MOD SCHOT 150V 50A TO249AB |
2,696 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 50A | 880 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 155°C | - | - | Chassis Mount | TO-249AB |
|
|
FST100200DIODE MOD SCHOT 200V 50A TO249AB |
5,266 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|

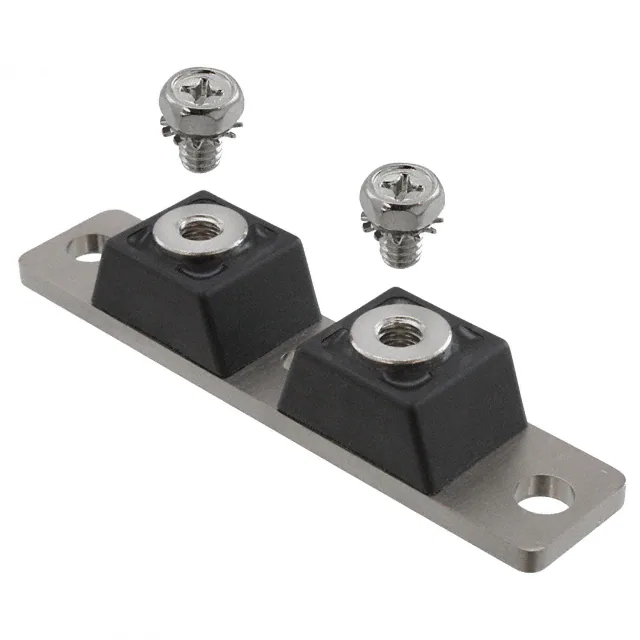

MBR12040CTDIODE MOD SCHOTT 40V 120A 2TOWER |
8,644 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

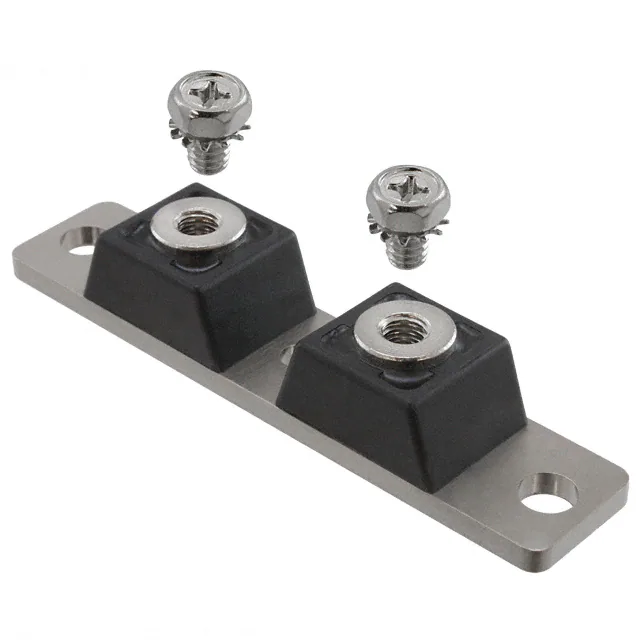

MBR12040CTRDIODE MOD SCHOTT 40V 120A 2TOWER |
7,868 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12060CTDIODE MOD SCHOTT 60V 120A 2TOWER |
3,406 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTDIODE MOD SCHOTT 45V 120A 2TOWER |
7,426 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTRDIODE MOD SCHOTT 45V 120A 2TOWER |
8,915 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
