Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

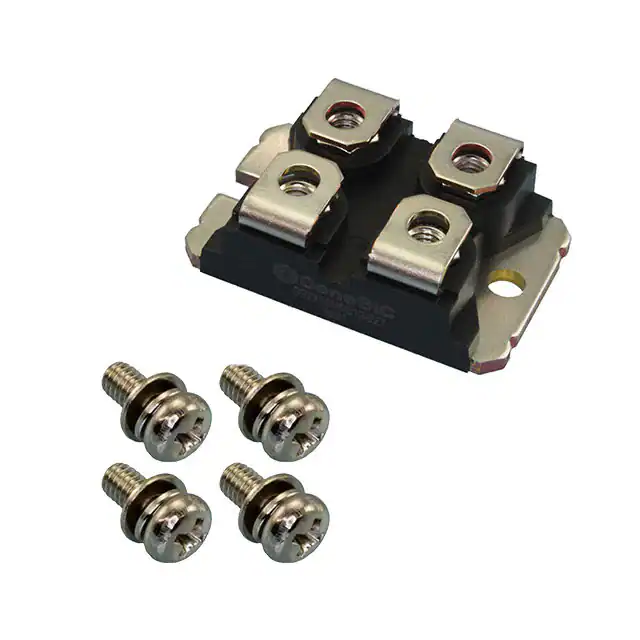

GB2X50MPS17-227DIODE MOD SIC 1700V 136A SOT-227 |
79 | - |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 136A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MBRT20060RDIODE MOD SCHOTT 60V 100A 3TOWER |
67 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MUR20020CTDIODE MODULE GP 200V 100A 2TOWER |
48 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR2X030A045DIODE MOD SCHOTT 45V 60A SOT-227 |
39 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 45 V | 60A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|

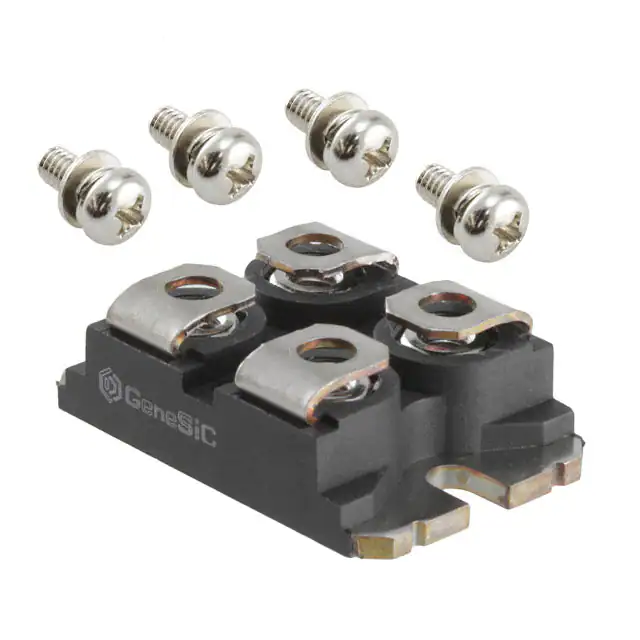

MUR2X060A02DIODE MODULE GP 200V 60A SOT-227 |
60 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 200 V | 60A | 1 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
MUR2X100A04DIODE MODULE GP 400V 100A SOT227 |
12 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 400 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 400 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
GE2X8MPS06DDIODE ARRAY SIC 650V 19A TO247-3 |
38 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 19A (DC) | - | No Recovery Time > 500mA (Io) | - | - | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
MBRT20060DIODE MOD SCHOTT 60V 100A 3TOWER |
10 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBR2X030A100DIODE MOD SCHOTT 100V 60A SOT227 |
8,081 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 100 V | 60A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
MUR2X060A06DIODE MODULE GP 600V 60A SOT-227 |
9,602 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 600 V | 60A | 1.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
