Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MURT10020DIODE MODULE GP 200V 50A 3TOWER |
2,658 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MURT10020RDIODE MODULE GP 200V 50A 3TOWER |
8,838 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard, Reverse Polarity | 200 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

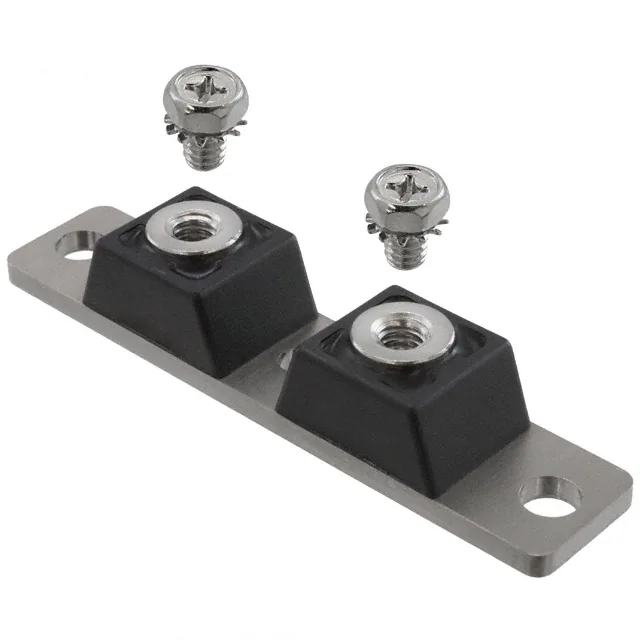

MBR20030CTDIODE MOD SCHOTT 30V 200A 2TOWER |
2,218 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

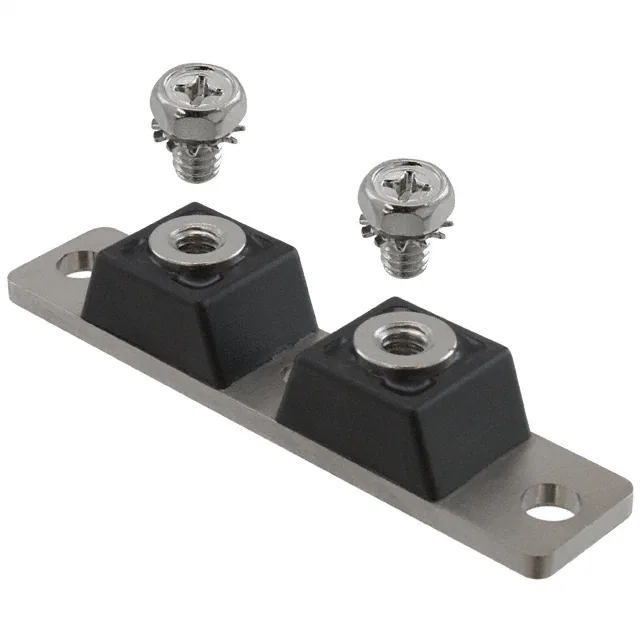

MBR20030CTRDIODE MOD SCHOTT 30V 200A 2TOWER |
6,574 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR200100CTDIODE MOD SCHOT 100V 200A 2TOWER |
8,219 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR200100CTRDIODE MOD SCHOT 100V 200A 2TOWER |
3,373 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 200A (DC) | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTDIODE MOD SCHOTT 20V 200A 2TOWER |
6,209 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20020CTRDIODE MOD SCHOTT 20V 200A 2TOWER |
2,926 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTDIODE MOD SCHOTT 35V 200A 2TOWER |
2,004 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
|
|
MBR20035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
7,242 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 200A (DC) | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
