Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRT150120DDIODE MOD GP 1200V 150A 3TOWER |
5,768 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15060DDIODE MODULE GP 600V 150A 3TOWER |
8,731 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15080DDIODE MODULE GP 800V 150A 3TOWER |
8,352 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 800 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150100DDIODE MOD GP 1000V 150A 3TOWER |
5,567 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1000 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150140DDIODE MOD GP 1400V 150A 3TOWER |
8,780 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150160DDIODE MOD GP 1600V 150A 3TOWER |
9,200 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBRT20035RDIODE MOD SCHOTT 35V 100A 3TOWER |
9,660 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT20040RDIODE MOD SCHOTT 40V 100A 3TOWER |
2,701 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

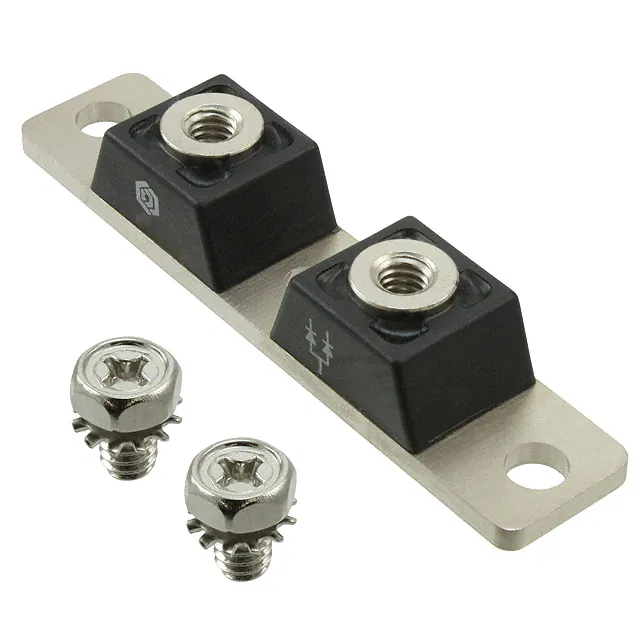

MBR40035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
6,525 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT20035DIODE MOD SCHOTT 35V 100A 3TOWER |
6,521 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
