Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

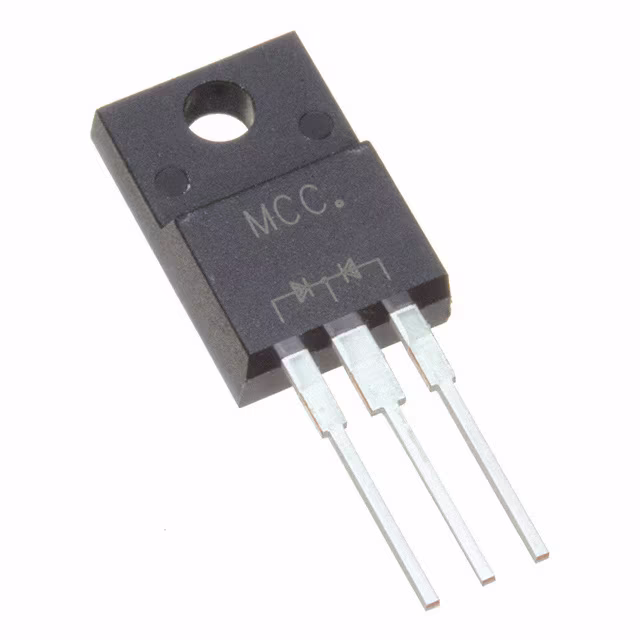

MBR2045FCTS-BPDIODE ARR SCHOT 45V 20A ITO220AB |
976 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 650 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MURS1620CTA-BPDIODE ARRAY GP 200V 16A TO-220AB |
116 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MURSB1620CTA-TPDIODE ARRAY GP 200V 16A D2PAK |
800 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
MURS1620FCTA-BPDIODE ARRAY GP 200V 16A ITO220AB |
975 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MBR3045FCTS-BPDIODE ARR SCHOT 45V 30A ITO220AB |
957 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MURS1660FCTA-BPDIODE ARRAY GP 600V 16A ITO220AB |
978 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MD70K16D1-BPDIODE MODULE GP 1600V 70A D1 |
10 | - |
|
Datasheet | - | D1 | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D1 |
|
MF300K06F3-BPDIODE MODULE GP 600V 150A F3 |
10 | - |
|
Datasheet | - | F3 Module | Tray | Active | 1 Pair Common Anode | Standard | 600 V | 150A | 1.4 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | F3 |
.jpg "BAS40-05HE3-TP")
|
BAS40-05HE3-TPDIODE ARR SCHOTT 40V 200MA SOT23 |
7,379 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
MMBD1505-TPDIODE ARRAY GP 180V 200MA SOT23 |
2,638 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 180 V | 200mA | 1.3 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 nA @ 180 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23 |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
