Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAT54ADW-TPDIODE ARR SCHOT 30V 200MA SOT363 |
8,675 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 125°C | - | - | Surface Mount | SOT-363 |
|
|
BAS40DW-06-TPDIODE ARR SCHOT 40V 200MA SOT363 |
2,249 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Pair Common Anode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | - | - | Surface Mount | SOT-363 |
|
MBRD6100CT-TPDIODE ARRAY SCHOTT 100V 6A DPAK |
5,999 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 6A | 740 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | - | - | Surface Mount | DPAK |
|
MBR20100CT-BPDIODE ARR SCHOT 100V 10A TO220AB |
5,160 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|

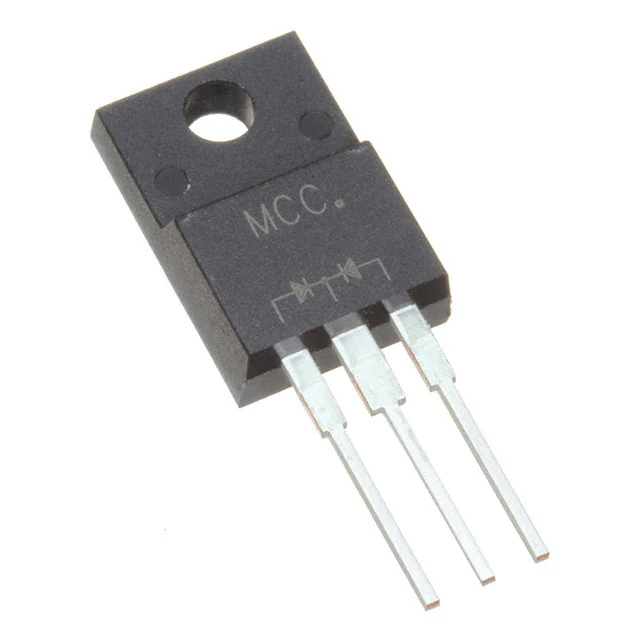

MBR10200FCT-BPDIODE ARR SCHOTTKY 200V ITO220AB |
1,544 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 920 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 200 V | -50°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MURSB1660CTA-TPDIODE ARRAY GP 600V 16A D2PAK |
1,220 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
|
MBRB20200CT-TPDIODE ARRAY SCHOT 200V 20A D2PAK |
840 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 200 V | 20A | 950 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
|
MBRL20100FCT-BPDIODE ARR SCHOTTKY 100V ITO220AB |
3,605 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MBRL40100FCT-BPDIODE ARR SCHOTTKY 100V ITO220AB |
4,730 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 710 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MBR20200PT-BPDIODE ARR SCHOTT 200V 20A TO2473 |
1,549 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 20A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
