Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTDF400KK100GDIODE MODULE GP 1000V 500A SP6 |
2,331 | - |
|
Datasheet | - | LP4 | Bulk | Active | 1 Pair Common Cathode | Standard | 1000 V | 500A | 2.7 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 290 ns | 250 µA @ 1000 V | - | - | - | Chassis Mount | SP6 |
|
|
1N6840DIODE ARRAY SCHOTTKY 35V 10A U3 |
7,967 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | -55°C ~ 150°C | - | - | Surface Mount | U3 (SMD-0.5) |
|
|
1N6840U3DIODE ARRAY SCHOTTKY 35V 10A U3 |
9,908 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 35 V | -65°C ~ 150°C | - | - | Surface Mount | U3 (SMD-0.5) |
|

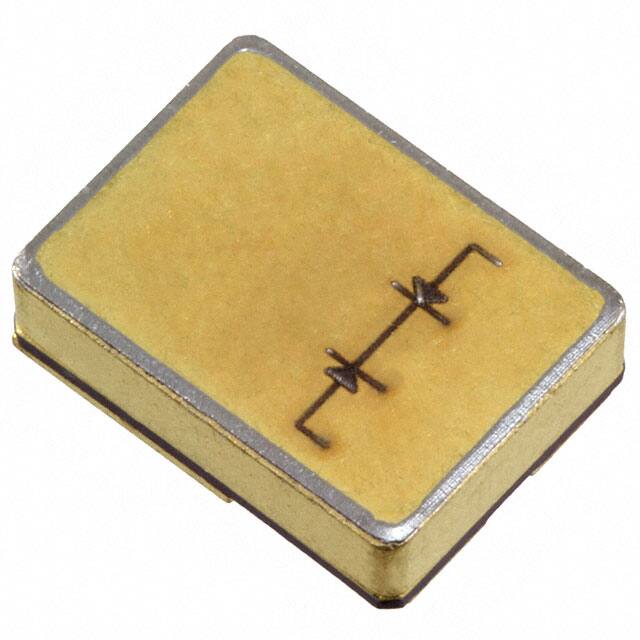

JANTXV1N6843CCU3/TRDIODE ARRAY SCHOTTKY 100V 15A U3 |
7,773 | - |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
|
APTDF400AA120GDIODE MODULE GP 1200V 470A SP6 |
7,465 | - |
|
Datasheet | - | LP4 | Bulk | Active | 1 Pair Common Anode | Standard | 1200 V | 470A | 3 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 250 µA @ 1200 V | - | - | - | Chassis Mount | SP6 |
|
APTDF400AK120GDIODE MODULE GP 1200V 470A SP6 |
7,653 | - |
|
Datasheet | - | LP4 | Tube | Active | 1 Pair Series Connection | Standard | 1200 V | 470A | 3 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 385 ns | 250 µA @ 1200 V | - | - | - | Chassis Mount | SP6 |
|

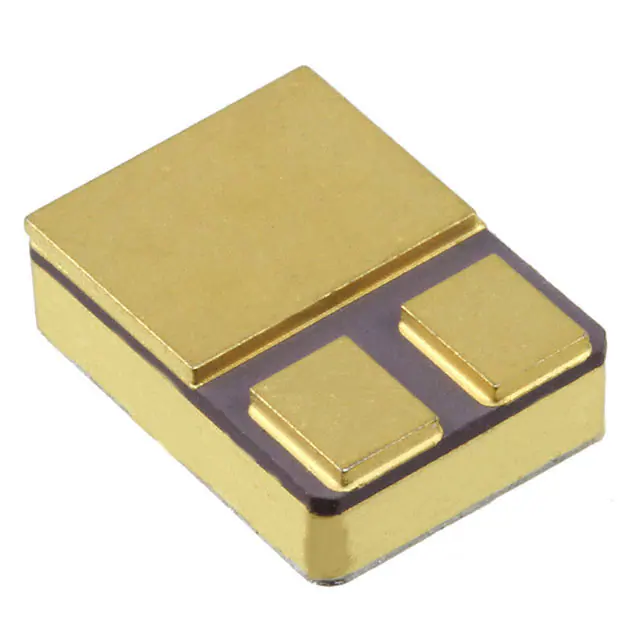

JANTXV1N6843CCU3DIODE ARRAY SCHOTTKY 100V 15A U3 |
4,404 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 100 V | 15A | 1.27 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/681 | Surface Mount | U3 (SMD-0.5) |
|
|
JAN1N7037CCU1DIODE ARRAY SCHOTTKY 100V 35A U1 |
6,062 | - |
|
Datasheet | - | 3-SMD, No Lead | Tray | Active | 1 Pair Common Cathode | Schottky | 100 V | 35A | 1.22 V @ 35 A | No Recovery Time > 500mA (Io) | - | 500 µA @ 100 V | -65°C ~ 150°C | Military | MIL-PRF-19500/730 | Surface Mount | U1 (SMD-1) |
|
|
1N7037CCU1DIODE ARRAY SCHOTTKY 100V 35A U1 |
4,678 | - |
|
Datasheet | - | 3-SMD, No Lead | Tray | Active | 1 Pair Common Cathode | Schottky | 100 V | 35A | 1.22 V @ 35 A | No Recovery Time > 500mA (Io) | - | 500 µA @ 100 V | -65°C ~ 150°C | - | - | Surface Mount | U1 (SMD-1) |
|
|
JANS1N5712UBCADIODE ARRAY SCHOTTKY 16V 75MA UB |
2,579 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 Pair Common Anode | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
