Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAS116DY-QXDIODE ARRAY GP 75V 200MA 6-TSSOP |
2,737 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Independent | Standard | 75 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | 150°C | Automotive | AEC-Q101 | Surface Mount | 6-TSSOP |
|
BAV23CVLDIODE ARR GP 200V 225MA TO-236AB |
9,920 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 150°C (Max) | - | - | Surface Mount | TO-236AB |
|
BAT854AW-QXDIODE ARR SCHOT 40V 200MA SOT323 |
1,059 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 40 V | 200mA (DC) | 550 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 25 V | 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
BAT54CY,115DIODE ARR SCHOT 30V 200MA 6TSSOP |
2,970 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Pair Common Cathode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 2 µA @ 25 V | 150°C | - | - | Surface Mount | 6-TSSOP |
|
1PS70SB85,115DIODE ARR SCHOTT 15V 30MA SOT323 |
7,105 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 30mA (DC) | 700 mV @ 30 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 1 V | 125°C (Max) | Automotive | AEC-Q100 | Surface Mount | SOT-323 |
|
PNE20060CPE-QZDIODE ARRAY GP 200V 3A CFP15B |
5,000 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 3A | 940 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 200 V | 175°C | Automotive | AEC-Q101 | Surface Mount | CFP15B |
|

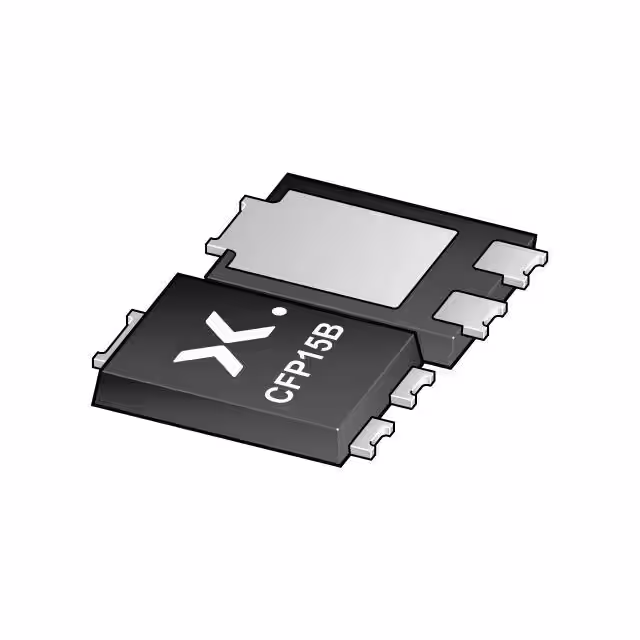

PMEG060T040CLPE-QZDIODE ARRAY SCHOTT 60V 2A CFP15B |
889 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 2A | 620 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 12 ns | 1.2 µA @ 60 V | 175°C | Automotive | AEC-Q100 | Surface Mount | CFP15B |
|
|
PNE20080CPE-QZDIODE ARRAY GP 200V 4A CFP15B |
5,000 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 930 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 200 V | 175°C | Automotive | AEC-Q101 | Surface Mount | CFP15B |
|
|
PNE200100CPE-QZDIODE ARRAY GP 200V 5A CFP15B |
4,980 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 5A | 950 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 200 V | 175°C | Automotive | AEC-Q101 | Surface Mount | CFP15B |
|
|
BAW56W/ZLXDIODE ARRAY GP 90V 150MA SOT-323 |
8,344 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | 1 Pair Common Anode | Standard | 90 V | 150mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 500 nA @ 80 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
