Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTST40120CTGDIODE ARR SCHOTT 120V 20A TO-220 |
7,957 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 910 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
|
MBR16100CTDIODE ARRAY SCHOT 100V 8A TO-220 |
6,315 | - |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 8A | 740 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
FFH30US30DNDIODE ARR AVAL 300V 30A TO247-3 |
2,825 | - |
|
Datasheet | Stealth™ | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Avalanche | 300 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 100 µA @ 300 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
SBR100-16JSDIODE ARR SCHOT 160V 10A TO220ML |
5,361 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 160 V | 10A | 800 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 160 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|
|
MBR4015CTLDIODE ARRAY SCHOT 15V 20A TO-220 |
8,327 | - |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 20A | 430 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -65°C ~ 150°C | - | - | Through Hole | TO-220 |
|
MBRD630CTT4GDIODE ARRAY SCHOTTKY 30V 3A DPAK |
1 | - |
|
Datasheet | SWITCHMODE™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | -65°C ~ 175°C | - | - | Surface Mount | DPAK |
|
|
SBT150-06JDIODE ARR SCHOTT 60V 15A TO220ML |
7,554 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 580 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|
|
SBR100-10JDIODE ARR SCHOT 100V 10A TO220ML |
2,791 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 50 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|

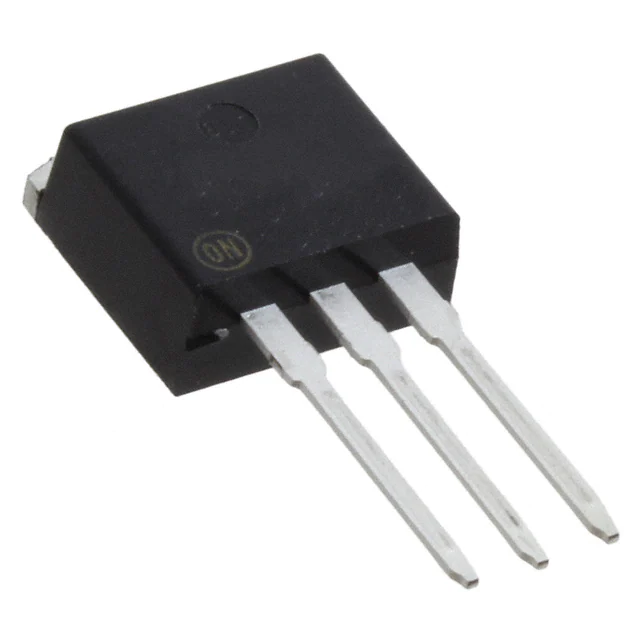

NTSB20120CT-1GDIODE ARRAY SCHOT 120V 10A TO262 |
392 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 1.1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
|
SBT100-16JSDIODE ARR SCHOT 160V 10A TO220ML |
5,294 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 160 V | 10A | 880 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 160 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
