Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR20S100CTTUDIODE ARR SCHOT 100V 20A TO2203 |
9,825 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 850 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
HN2D02FUTW1T1DIODE SWITCH 100MA 85V SOT363 |
7,330 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DCC010-TB-EDIODE ARRAY GP 80V 100MA SOT23-3 |
8,809 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
FFPF04U40DNTUDIODE ARR AVAL 400V 4A TO220F-3 |
7,299 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Avalanche | 400 V | 4A | 1.4 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 400 V | -65°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|
BAS16DXV6T1DIODE ARRAY GP 75V 200MA SOT-563 |
6,298 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 75 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-563 |
|
|
BAV70DXV6T1GDIODE SWITCH DUAL CC 70V SOT563 |
9,527 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MBRD650CTT4DIODE ARRAY SCHOTTKY 50V 3A DPAK |
9,868 | - |
|
Datasheet | SWITCHMODE™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 50 V | -65°C ~ 175°C | - | - | Surface Mount | DPAK |
|
|
FFPF10U30DNTUDIODE ARR AVAL 300V 10A TO220F-3 |
7,719 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Avalanche | 300 V | 10A | 1.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 300 V | -65°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|

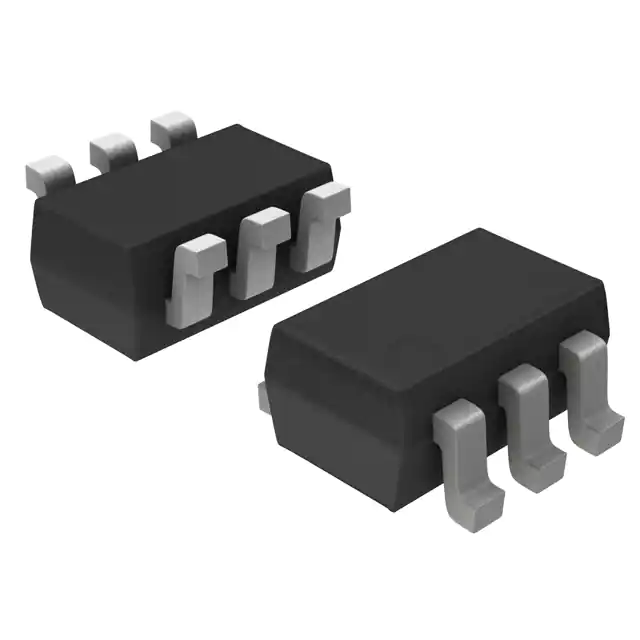

MBD54DWT1DIODE SCHOTTKY DUAL 30V SOT363 |
8,700 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RURD620CCS9A-F085PDIODE ARR AVAL 200V 6A TO-252AA |
7,025 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Avalanche | 200 V | 6A | 1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 100 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-252AA |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
