Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB4X313F0RDIODE ARR SCHOTT 30V 200MA MINI4 |
8,001 | - |
|
Datasheet | - | SC-61AB | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 200mA | 550 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 1.5 ns | 50 µA @ 30 V | 125°C (Max) | - | - | Surface Mount | Mini4-G4-B |
|
|
DB4X314K0RDIODE ARRAY SCHOT 30V 30MA MINI4 |
7,746 | - |
|
Datasheet | - | SC-61AB | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 30mA (DC) | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 1 ns | 300 nA @ 30 V | 125°C (Max) | - | - | Surface Mount | Mini4-G4-B |
|
MA3J142DGLDIODE ARRAY GP 80V 100MA SMINI3 |
9,440 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|
|
MA3J142EGLDIODE ARRAY GP 80V 100MA SMINI3 |
6,768 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 ns | 100 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|

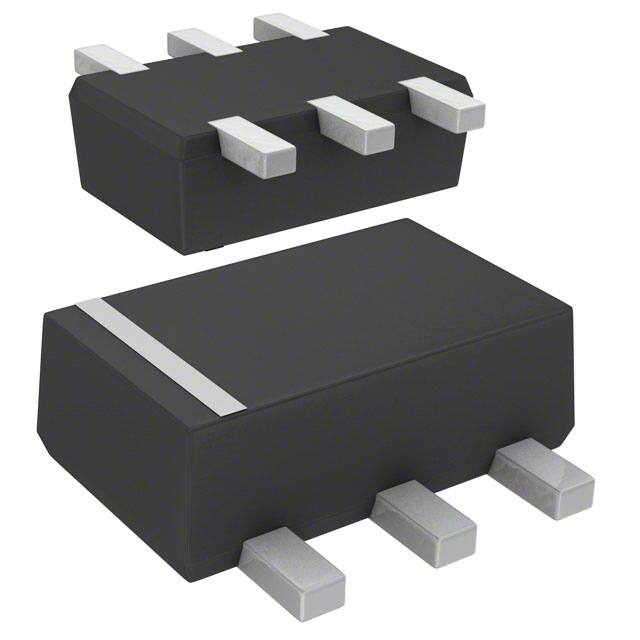

DB6J316K0RDIODE ARR SCHOT 30V 100MA SMINI6 |
3,945 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Discontinued at Digi-Key | 3 Independent | Schottky | 30 V | 100mA | 550 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 800 ps | 15 µA @ 30 V | 125°C (Max) | - | - | Surface Mount | SMini6-F3-B |
|
DA3J102D0LDIODE ARRAY GP 80V 100MA SMINI3 |
7,821 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2-B |
|
DB5S309K0RDIODE ARR SCHOT 30V 100MA SOT665 |
8,502 | - |
|
Datasheet | - | SOT-665 | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Schottky | 30 V | 100mA | 580 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 1.3 ns | 300 nA @ 10 V | 125°C (Max) | - | - | Surface Mount | SOT-665 |
|
DA4J104K0RDIODE ARRAY GP 80V 200MA SMINI4 |
2,011 | - |
|
Datasheet | - | 4-SMD, Flat Leads | Tape & Reel (TR) | Discontinued at Digi-Key | 2 Independent | Standard | 80 V | 200mA (DC) | 1.1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 500 nA @ 75 V | 150°C (Max) | - | - | Surface Mount | SMini4-F3-B |
|
|
MA3J1430GLDIODE ARRAY GP 40V 100MA SMINI3 |
6,551 | - |
|
Datasheet | - | SC-85 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 40 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 150 ns | 100 nA @ 40 V | 150°C (Max) | - | - | Surface Mount | SMini3-F2 |
|
|
DA3S102D0LDIODE ARRAY GP 80V 100MA SSMINI3 |
6,933 | - |
|
Datasheet | - | SC-89, SOT-490 | Tape & Reel (TR) | Discontinued at Digi-Key | 1 Pair Common Anode | Standard | 80 V | 100mA (DC) | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 10 ns | 100 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SSMini3-F3-B |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
