Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2320157GEN PURP 24V 20A MODULE |
124 | - |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 24 V | 20A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|

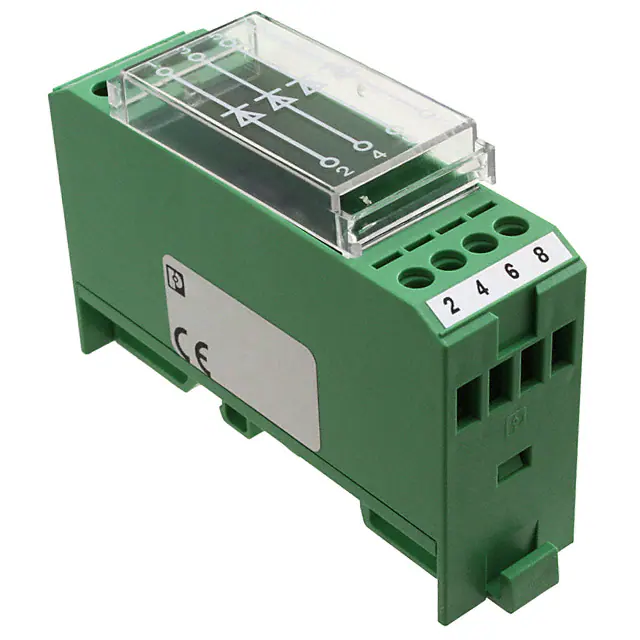

2952790DIODE MOD GP 1000V 1.5A MOD |
3 | - |
|
Datasheet | - | Module | Bulk | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|

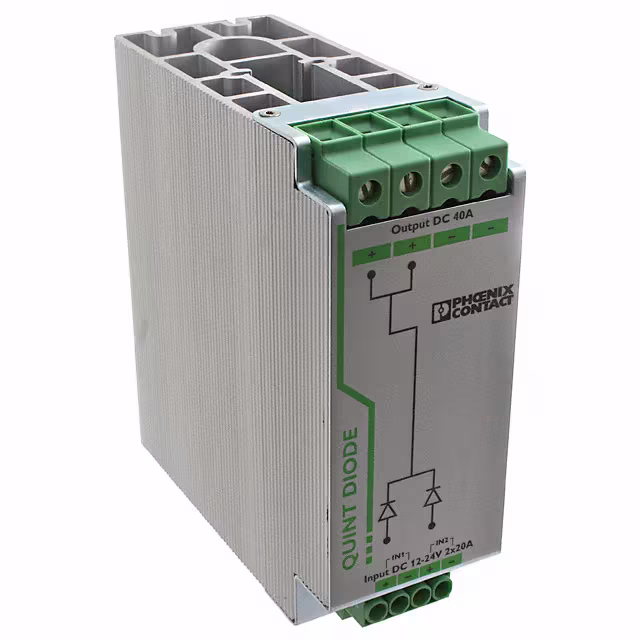

2320160GEN PURP 48V 20A MODULE |
18 | - |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|

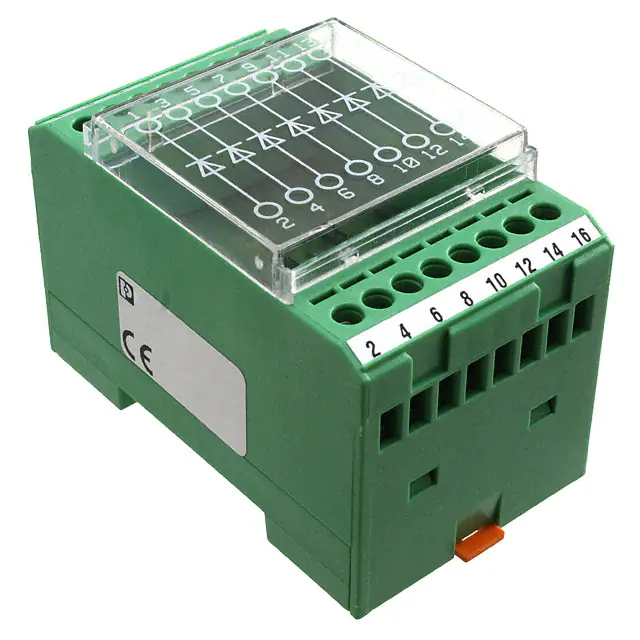

2950103DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2954798DIODE MOD GP 1300V 400MA MOD |
9 | - |
|
Datasheet | - | Module | Bulk | Active | 4 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2954895DIODE MOD GP 1300V 500MA MOD |
6 | - |
|
Datasheet | - | Module | Bulk | Active | 17 Independent | Standard | 1300 V | 500mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|

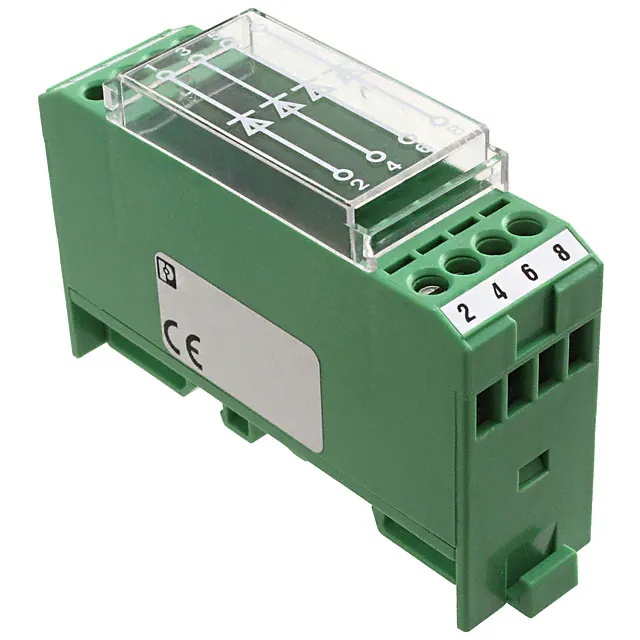

2950048GEN PURP 1300V 700MA MODULE |
3 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 4 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | - | Module |
|
2949389DIODE MOD GP 1000V 1.5A MOD |
4 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

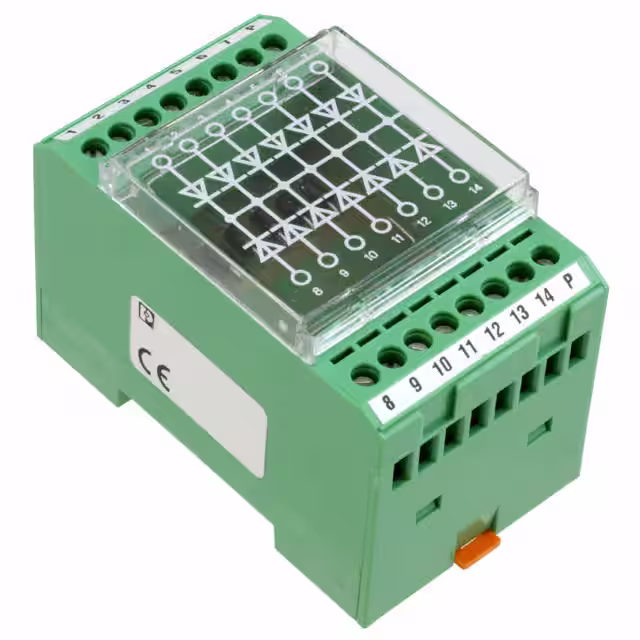

2950116DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

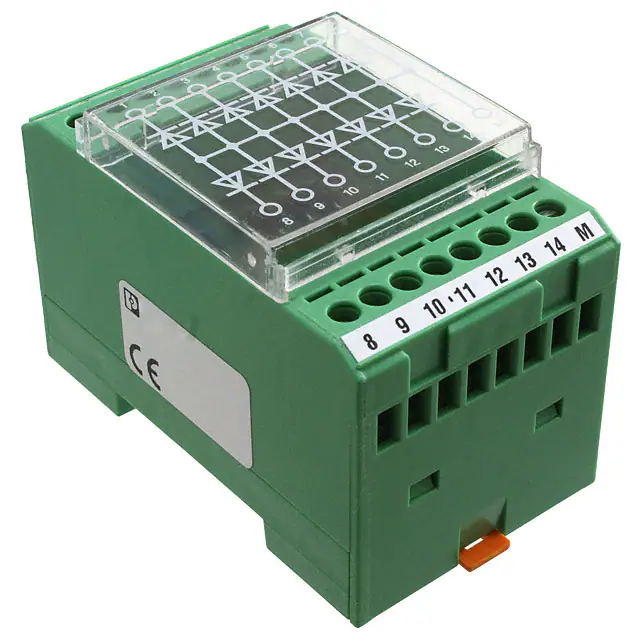

2950129DIODE MOD GP 1300V 700MA MOD |
2 | - |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
