Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR2045CTPDIODE ARRAY SCHOTTKY 45V TO220AB |
263 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 840 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
SDURF2030CTRDIODE ARRAY GP 300V ITO220AB |
936 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Standard | 300 V | - | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 300 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|

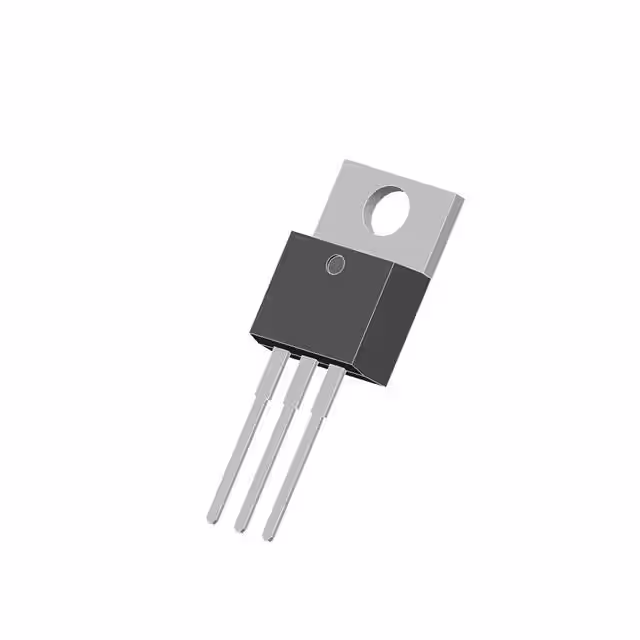

42CTQ030DIODE ARR SCHOTT 30V 20A TO220AB |
629 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 30 V | 20A | 500 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
40CTQ015DIODE ARR SCHOTT 15V 20A TO220AB |
990 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 15 V | 20A | 410 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10.5 mA @ 15 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MBR4060CTDIODE ARRAY SCHOTTKY 60V TO220AB |
833 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 750 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
MBRF40200CTRDIODE ARRAY SCHOTT 200V ITO220AB |
196 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Schottky | 200 V | - | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MBR40150CTDIODE ARRAY SCHOTT 150V TO-220AB |
50 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
SDUR3060WTDIODE ARRAY GP 600V TO-247AD |
96 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | - | 2.03 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AD |
|
|
MBRF10100CTPDIODE ARRAY SCHOTT 100V ITO220AB |
500 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MBRF1080CTLDIODE ARRAY SCHOTT 80V ITO220AB |
481 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 80 V | - | 750 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 80 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
