Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR8045WTDIODE ARRAY SCHOTTKY 45V TO247AD |
8 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 600 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AD |
|
83CNQ080DIODE MODULE SCHOTT 80V 40A PRM2 |
2 | - |
|
Datasheet | - | PRM2 | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | - | - | Chassis Mount | PRM2 |
|

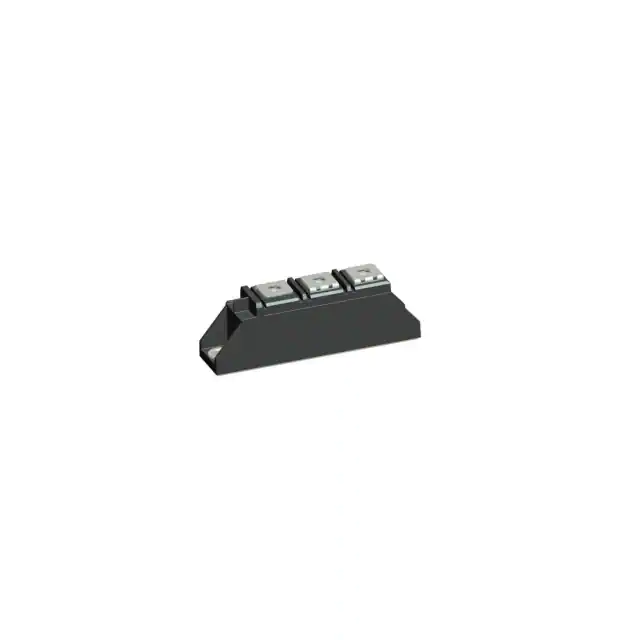

SM090KD800G1DIODE MODULE GP 800V 100A T1 |
4 | - |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | Standard | 800 V | 100A | 1.15 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | T1 |
|
SK2U240-200DIODE MODULE GP 200V 123A SOT227 |
8,384 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Box | Active | 2 Independent | Standard | 200 V | 123A (DC) | 1.1 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 500 µA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
SM400T200D1DIODE MODULE SCHOTTKY 200V 200A |
3 | - |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | Schottky | 200 V | 200A | 990 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | - |
|
SDURF1060CTRDIODE ARRAY GP 600V ITO220AB |
7,357 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Standard | 600 V | - | 1.55 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MBR1060CTLDIODE ARRAY SCHOTTKY 60V TO220AB |
2,049 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | - | 600 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MBR1045CTDIODE ARRAY SCHOTTKY 45V TO220AB |
5,374 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
SDURF2020CTDIODE ARRAY GP 200V ITO220AB |
46 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | - | 1.15 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MBRF20100CTPDIODE ARRAY SCHOTT 100V ITO220AB |
19 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
