Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH10LCD06CTDIODE ARRAY GP 600V 5A TO-220 |
7,678 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 5A | 2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH10BC065CTDIODE ARRAY GP 650V 5A TO-220 |
3,414 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 650 V | 5A | 3.2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 2.5 µA @ 650 V | - | - | - | Through Hole | TO-220 |
|
STPS30L30CGDIODE ARRAY SCHOTT 30V 15A D2PAK |
2,311 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 460 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|
|
STTH20LCD06CTDIODE ARRAY GP 600V 10A TO-220 |
8,260 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS40L40CTDIODE ARRAY SCHOT 40V 20A TO-220 |
3,939 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 40 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS4030CTDIODE ARRAY SCHOT 30V 20A TO-220 |
9,666 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 20A | 490 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH20LCD06CG-TRDIODE ARRAY GP 600V 10A D2PAK |
4,938 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Surface Mount | D2PAK |
|
STPS40L45CGDIODE ARRAY SCHOTT 45V 20A D2PAK |
6,848 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|

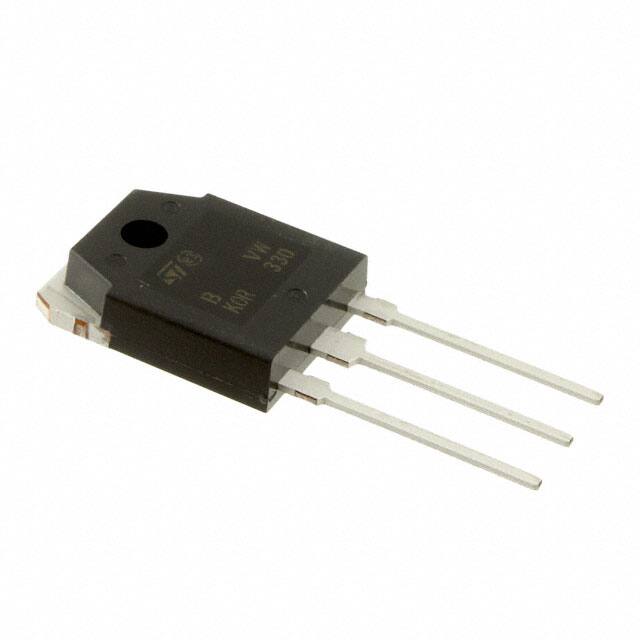

STTH30AC06CPDIODE ARRAY GP 600V 15A TO-3PF |
3,752 | - |
|
Datasheet | - | TO-3PF | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-3PF |
|
STPS40SM80CFPDIODE ARR SCHOTT 80V TO-220FPAB |
9,203 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 80 V | 175°C (Max) | - | - | Through Hole | TO-220FPAB |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
