Diode Arrays

Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
BYV430J-600PQ DIODE ARRAY GP 600V 30A TO-3P WeEn Semiconductors	3,784	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Active	1 Pair Common Cathode	Standard	600 V	30A	2 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	90 ns	10 µA @ 600 V	175°C (Max)	-	-	Through Hole	TO-3P
BYV415K-600PQ DIODE ARRAY GP 600V 15A TO-3P WeEn Semiconductors	898	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Active	1 Pair Common Cathode	Standard	600 V	15A	2.1 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	45 ns	10 µA @ 600 V	-65°C ~ 175°C	-	-	Through Hole	TO-3P
BYV430W-600PQ DIODE ARRAY GP 600V 60A TO247-3 WeEn Semiconductors	2,027	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Standard	600 V	60A	2 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	90 ns	10 µA @ 600 V	175°C (Max)	-	-	Through Hole	TO-247-3
BYV34G-600,127 DIODE ARRAY GP 600V 20A I2PAK WeEn Semiconductors	5,995	-	RFQ	Datasheet	-	TO-262-3 Long Leads, I2PAK, TO-262AA	Tube	Active	1 Pair Common Cathode	Standard	600 V	20A	1.48 V @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	50 µA @ 600 V	150°C (Max)	-	-	Through Hole	I2PAK
WNSC2D16650CJQ DIODE ARRAY SIC 650V 16A TO-3PF WeEn Semiconductors	449	-	RFQ	Datasheet	-	TO-3P-3, SC-65-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	16A	1.7 V @ 8 A	No Recovery Time > 500mA (Io)	0 ns	40 µA @ 650 V	175°C	-	-	Through Hole	TO-3PF
WNSC2D20650CWQ DIODE ARRAY SIC 650V 20A TO247-3 WeEn Semiconductors	475	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	20A	1.7 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 650 V	175°C	-	-	Through Hole	TO-247-3

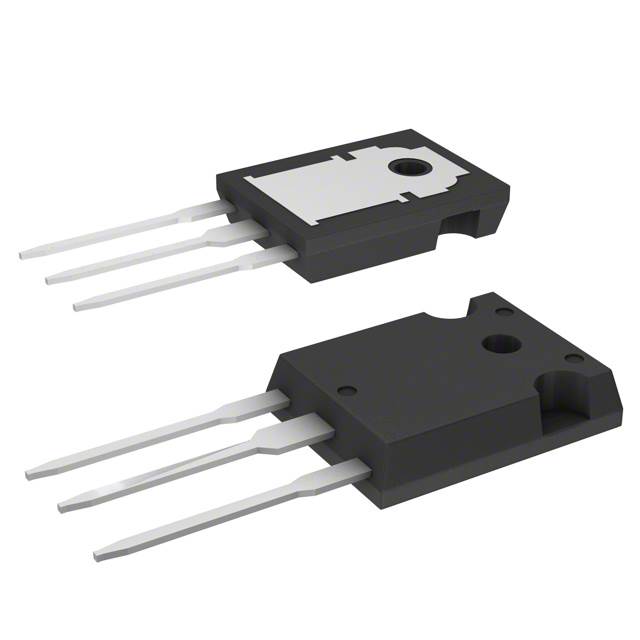

WNSC6D20650CW6Q DIODE ARRAY SIC 650V 20A TO247-3 WeEn Semiconductors	451	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	20A	1.45 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 650 V	175°C	-	-	Through Hole	TO-247-3
WNSC2D30650CWQ DIODE ARRAY SIC 650V 30A TO247-3 WeEn Semiconductors	2,218	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	30A	1.7 V @ 15 A	No Recovery Time > 500mA (Io)	0 ns	50 µA @ 650 V	175°C	-	-	Through Hole	TO-247-3
NXPSC20650W6Q DIODE ARRAY SIC 650V 20A TO247-3 WeEn Semiconductors	707	-	RFQ	Datasheet	-	TO-247-3	Bulk	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	650 V	20A	1.7 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	250 µA @ 650 V	175°C (Max)	-	-	Through Hole	TO-247-3
BYV32E-150,127 DIODE ARRAY GP 150V 20A TO-220AB WeEn Semiconductors	44	-	RFQ	Datasheet	-	TO-220-3	Tube	Active	1 Pair Common Cathode	Standard	150 V	20A	1.15 V @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	25 ns	30 µA @ 150 V	150°C (Max)	-	-	Through Hole	TO-220AB

WINSUN SOURCING SUPPORT

Need Help Sourcing Diode Arrays?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Diode Arrays FAQ

Common questions about filtering, comparing and sourcing Diode Arrays components.

How can I narrow the Diode Arrays selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Diode Arrays part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
