Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FYPF1010DNTUDIODE ARR SCHOT 100V 10A TO220F3 |
379,500 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 950 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|
MBRP3045NTUDIODE ARR SCHOTT 45V 15A TO2203 |
208,000 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
RURD620CCS9A-SB82215DIODE ARR AVAL 200V 6A TO-252AA |
2,500 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | 1 Pair Common Cathode | Avalanche | 200 V | 6A | 1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 100 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-252AA |

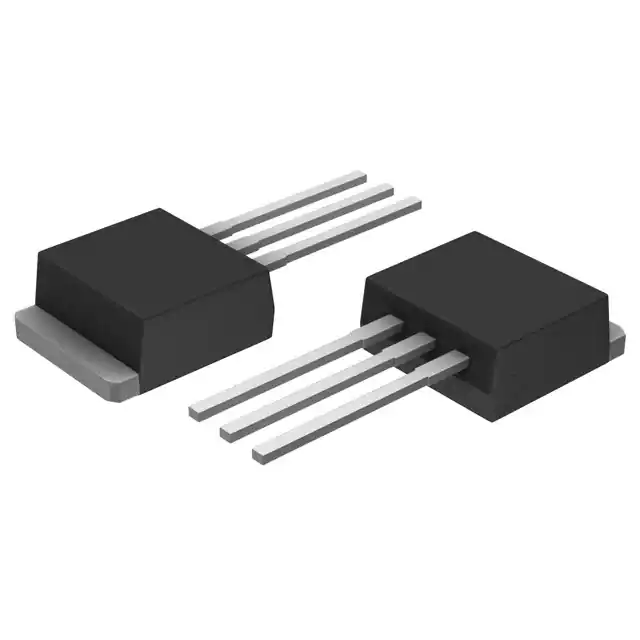

_418D-01.jpg "MBRB41H100CT-1G")
|
MBRB41H100CT-1GRECTIFIER DIODE, SCHOTTKY, 1 PHA |
1,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FFSH1665ADN-F155DIODE ARRAY SIC 650V 11A TO247-3 |
2,425 | - |
|
Datasheet | - | TO-247-3 | Bulk | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 11A (DC) | 1.75 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
FFSH15120ADN-F155DIODE ARRAY SIC 1200V 8A TO247-3 |
17,289 | - |
|
Datasheet | - | TO-247-3 | Bulk | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 8A (DC) | 1.75 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
FFPF60SB60DSTUDIODE ARR AVAL 600V 4A TO220F-3 |
946 | - |
|
Datasheet | Stealth™ | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Series Connection | Avalanche | 600 V | 4A | 2.6 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 100 µA @ 600 V | -65°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|
FFAF20U20DNTUDIODE ARRAY GP 200V 20A TO-3PF |
720 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 20A | 1.2 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 40 ns | 20 µA @ 200 V | -65°C ~ 150°C | - | - | Through Hole | TO-3PF |
|
|
FFAF10U40DNTUDIODE ARRAY GP 400V 10A TO-3PF |
563 | - |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.4 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 400 V | -65°C ~ 150°C | - | - | Through Hole | TO-3PF |
|
FFA10U40DNTUDIODE ARRAY GP 400V 10A TO-3P |
515 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.4 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 400 V | -65°C ~ 150°C | - | - | Through Hole | TO-3P |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
