Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD16200S-DKM2MMDIODE MODULE GP 1600V 200A S3 |
140 | - |
|
Datasheet | - | S-3 Module | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 200A | 1.5 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | S3 |
|
DURB2020CTDIODE ARRAY GP 200V 10A TO263 |
24,000 | - |
|
Datasheet | DUR | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.15 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
MBRB20100CTDIODE ARRAY SCHOT 100V 10A TO263 |
19,362 | - |
|
Datasheet | MBR | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 800 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|

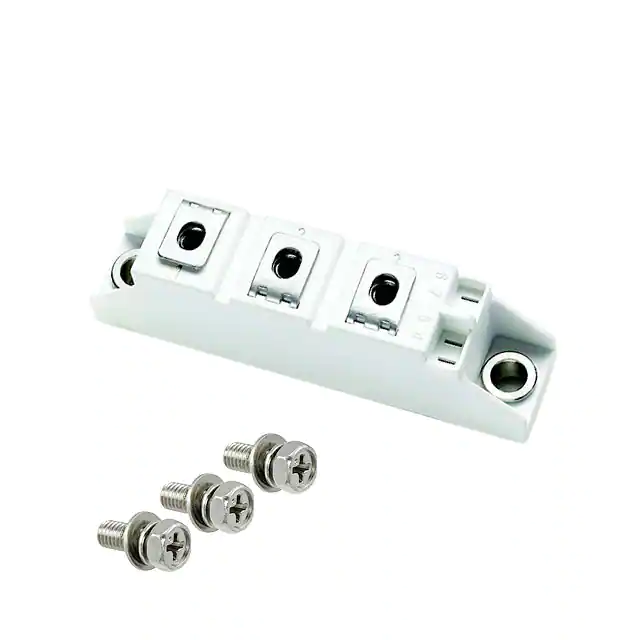

MD16110A-DKM2MMDIODE MODULE GP 1600V 110A A3 |
140 | - |
|
Datasheet | - | A-3 Module | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 110A | 1.6 V @ 350 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | A3 |
|
DURF1040CTDIODE ARRAY GP 400V 5A ITO220AB |
19,838 | - |
|
Datasheet | DUR | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 5A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 400 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
DURF1040CTRDIODE ARRAY GP 400V 5A ITO220AB |
18,959 | - |
|
Datasheet | DUR | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Standard | 400 V | 5A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 400 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
DURF1030CTRDIODE ARRAY GP 300V 5A ITO220AB |
18,770 | - |
|
Datasheet | DUR | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Standard | 300 V | 5A | 1.3 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 300 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MBRB2060CTDIODE ARRAY SCHOTT 60V 10A TO263 |
14,497 | - |
|
Datasheet | MBR | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
MBR2060CTDIODE ARR SCHOTT 60V 10A TO220AB |
19,720 | - |
|
Datasheet | MBR | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
DSTF3060CRDIODE ARR SCHOT 60V 15A ITO220AB |
18,659 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 1 Pair Common Anode | Schottky | 60 V | 15A | 700 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.2 mA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
