Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFT20140DIODE MODULE GP 400V 100A MODULE |
6,698 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 400 V | - | - | - | Screw Mount | Module |
|
APT2X21DC120JDIODE MOD SIC 1200V 20A SOT-227 |
2,278 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC60JDIODE MOD SIC 600V 40A SOT-227 |
5,296 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC120JDIODE MOD SIC 1200V 40A SOT-227 |
9,645 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
APT2X61DC60JDIODE MODULE SIC 600V 60A ISOTOP |
6,825 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 60A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 1.2 mA @ 600 V | - | - | - | Chassis Mount | ISOTOP® |
|
CPT30060DIODE MOD SCHOTT 60V 150A 2TOWER |
5,817 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 150A | 820 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|
CPT50060DIODE MOD SCHOTT 60V 250A 2TOWER |
6,610 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 250A | 730 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|

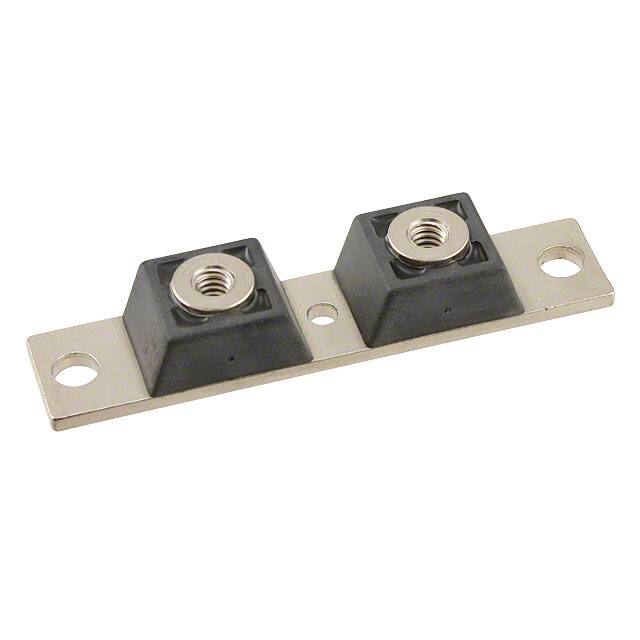

CPT600150DDIODE MOD SCHOT 150V 300A 2TOWER |
5,602 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Series Connection | Schottky | 150 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 7 mA @ 150 V | - | - | - | Chassis Mount | Twin Tower |
|

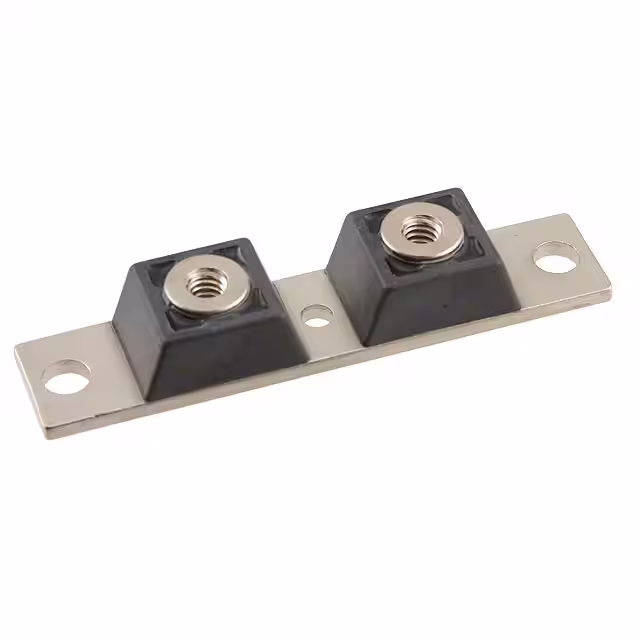

CPT60145DIODE MOD SCHOTT 45V 300A 2TOWER |
6,177 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 300A | 550 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 21 mA @ 45 V | - | - | - | Chassis Mount | Twin Tower |
|
FST60100DIODE MOD SCHOTT 100V 60A TO-249 |
4,081 | - |
|
Datasheet | - | TO-249-9, TO-249AA Variant | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 60A | 860 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | - | - | Chassis Mount | TO-249 |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
