Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6660DIODE ARR SCHOTT 45V 15A TO254AA |
7,747 | - |
|
Datasheet | - | TO-254-3, TO-254AA (Straight Leads) | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 45 V | 15A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Surface Mount | TO-254AA |
|
1N6660CAT1DIODE ARR SCHOTT 45V 15A TO254AA |
7,841 | - |
|
Datasheet | - | TO-254-3, TO-254AA | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-254AA |
|
|
1N6660CCT1DIODE ARR SCHOTT 45V 15A TO254AA |
5,963 | - |
|
Datasheet | - | TO-254-3, TO-254AA | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | - | - | Through Hole | TO-254AA |
|
|
JANTXV1N6660CCT1DIODE ARR SCHOTT 45V 15A TO254AA |
8,639 | - |
|
Datasheet | - | TO-254-3, TO-254AA (Straight Leads) | Bulk | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|

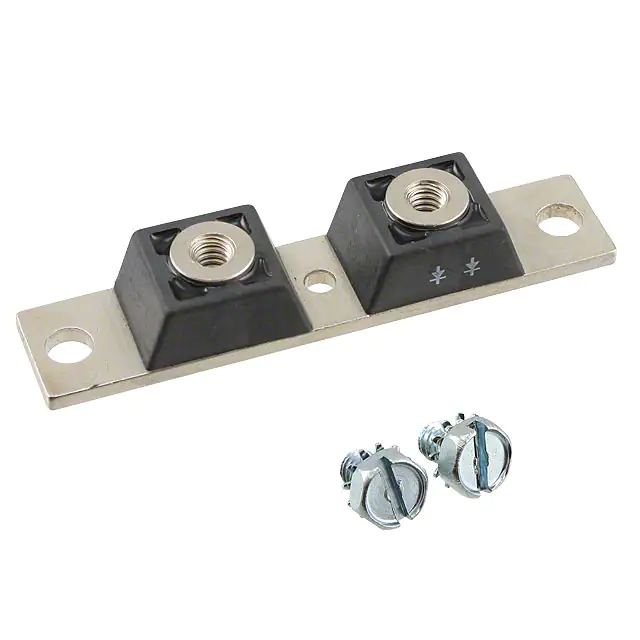

CPT30050DIODE MOD SCHOTT 50V 150A 2TOWER |
6,122 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | - | - | Chassis Mount | Twin Tower |
|

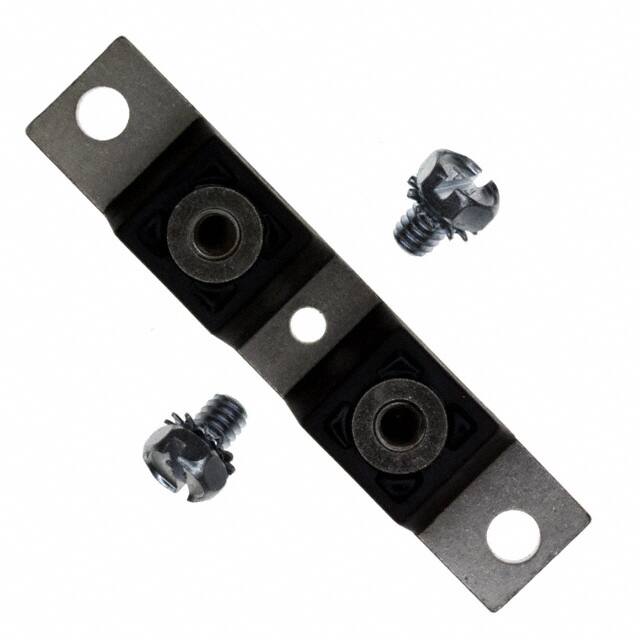

CPT600100DIODE MOD SCHOT 100V 300A 2TOWER |
4,620 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | - | - | Chassis Mount | Twin Tower |
|
APT8DQ60KCTGDIODE ARRAY GP 600V 8A TO220 |
9,864 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A | 2.4 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 19 ns | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-220 [K] |
|
CPT40145DIODE MOD SCHOTT 45V 200A MD3CC |
6,621 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | - | - | - | Chassis Mount | MD3CC |
|
APT2X50DC120JDIODE MOD SIC 1200V 50A SOT-227 |
8,873 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
|
APT2X50DC60JDIODE MOD SIC 600V 50A SOT-227 |
4,427 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
