Diode Arrays

Browse available Diode Arrays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSSK10-018A DIODE ARR SCHOTT 180V 5A TO2203 IXYS	8,211	-	RFQ	Datasheet	-	TO-220-3	Tube	Active	1 Pair Common Cathode	Schottky	180 V	5A	780 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	300 µA @ 180 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
MURB1620CT-1 DIODE ARRAY GP 200V 8A TO-262-3 Vishay General Semiconductor - Diodes Division	6,312	-	RFQ	Datasheet	FRED Pt®	TO-262-3 Long Leads, I2PAK, TO-262AA	Tube	Obsolete	1 Pair Common Cathode	Standard	200 V	8A	975 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	5 µA @ 200 V	-65°C ~ 175°C	-	-	Through Hole	TO-262-3
STPS40100CT DIODE ARR SCHOTT 100V 20A TO-220 STMicroelectronics	4,929	-	RFQ	Datasheet	-	TO-220-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	100 V	20A (DC)	-	Fast Recovery =< 500ns, > 200mA (Io)	-	-	-	-	-	Through Hole	TO-220
STPS40120CR DIODE ARRAY SCHOT 120V 20A I2PAK STMicroelectronics	3,706	-	RFQ	Datasheet	-	TO-262-3 Long Leads, I2PAK, TO-262AA	Tube	Obsolete	1 Pair Common Cathode	Schottky	120 V	20A	900 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	25 µA @ 120 V	175°C (Max)	-	-	Through Hole	I2PAK
MBRB30H100CT-E3/45 DIODE ARR SCHOT 100V 15A TO263AB Vishay General Semiconductor - Diodes Division	9,746	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Schottky	100 V	15A	820 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 µA @ 100 V	-65°C ~ 175°C	-	-	Surface Mount	TO-263AB (D2PAK)
SBR40150CTFP DIODE ARR SBR 150V 20A ITO220AB Diodes Incorporated	3,614	-	RFQ	Datasheet	SBR®	TO-220-3 Full Pack, Isolated Tab	Tube	Obsolete	1 Pair Common Cathode	Super Barrier	150 V	20A	900 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 150 V	-65°C ~ 175°C	-	-	Through Hole	ITO-220AB
SBR20U100CTE DIODE ARRAY SBR 100V 10A TO-262 Diodes Incorporated	2,831	-	RFQ	Datasheet	SBR®	TO-262-3 Long Leads, I2PAK, TO-262AA	Tube	Obsolete	1 Pair Common Cathode	Super Barrier	100 V	10A	700 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 100 V	-65°C ~ 175°C	-	-	Through Hole	TO-262
VS-16CTQ100PBF DIODE ARR SCHOTT 100V 8A TO2203 Vishay General Semiconductor - Diodes Division	9,312	-	RFQ	Datasheet	-	TO-220-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	100 V	8A	720 mV @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	-	550 µA @ 100 V	-55°C ~ 175°C	-	-	Through Hole	TO-220-3
FMEN-220B DIODE ARR SCHOTT 150V 20A TO220F Sanken Electric USA Inc.	2	-	RFQ	Datasheet	-	TO-220-3 Full Pack	Bulk	Obsolete	1 Pair Common Cathode	Schottky	150 V	20A	920 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 150 V	-40°C ~ 150°C	-	-	Through Hole	TO-220F
VT60M45C-M3/4W DIODE ARR SCHOTT 45V 30A TO220AB Vishay General Semiconductor - Diodes Division	4,069	-	RFQ	Datasheet	TMBS®	TO-220-3	Tube	Active	1 Pair Common Cathode	Schottky	45 V	30A	680 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	450 µA @ 100 V	-40°C ~ 175°C	Automotive	AEC-Q101	Through Hole	TO-220AB
MBR40150PT_T0_00001 DIODE ARR SCHOT 150V 40A TO247AD Panjit International Inc.	6,410	-	RFQ	Datasheet	MBR4040PT	TO-247-3	Tube	Active	1 Pair Common Cathode	Schottky	150 V	40A	900 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 150 V	-65°C ~ 175°C	-	-	Through Hole	TO-247AD (TO-3P)
VS-12CWQ06FNHM3 DIODE ARRAY SCHOTTKY 60V 6A DPAK Vishay General Semiconductor - Diodes Division	9,842	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Active	1 Pair Common Cathode	Schottky	60 V	6A	790 mV @ 12 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 60 V	150°C (Max)	Automotive	AEC-Q101	Surface Mount	TO-252AA (DPAK)
VS-12CWQ06FNTRHM3 DIODE ARRAY SCHOTTKY 60V 6A DPAK Vishay General Semiconductor - Diodes Division	3,983	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	1 Pair Common Cathode	Schottky	60 V	6A	610 mV @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 60 V	150°C (Max)	Automotive	AEC-Q101	Surface Mount	TO-252AA (DPAK)
VS-12CWQ06FNTRLHM3 DIODE ARRAY SCHOTTKY 60V 6A DPAK Vishay General Semiconductor - Diodes Division	4,387	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	1 Pair Common Cathode	Schottky	60 V	6A	790 mV @ 12 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 60 V	150°C (Max)	Automotive	AEC-Q101	Surface Mount	TO-252AA (DPAK)
VS-12CWQ06FNTRRHM3 DIODE ARRAY SCHOTTKY 60V 6A DPAK Vishay General Semiconductor - Diodes Division	7,988	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	1 Pair Common Cathode	Schottky	60 V	6A	790 mV @ 12 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 60 V	150°C (Max)	Automotive	AEC-Q101	Surface Mount	TO-252AA (DPAK)
VS-MBR3035WTPBF DIODE ARR SCHOTT 35V 15A TO247AC Vishay General Semiconductor - Diodes Division	8,780	-	RFQ	Datasheet	-	TO-247-3	Tube	Obsolete	1 Pair Common Cathode	Schottky	35 V	15A	760 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 35 V	-65°C ~ 150°C	-	-	Through Hole	TO-247AC

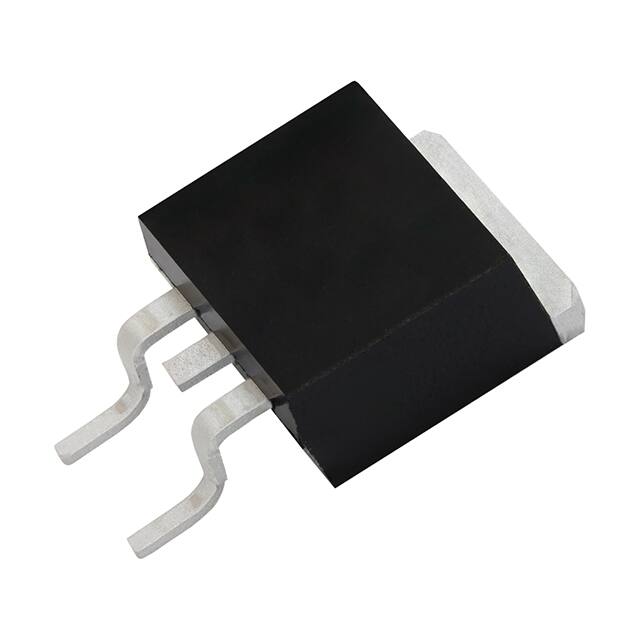

VS-25CTQ045SLHM3 DIODE ARR SCHOTT 45V 30A TO263AB Vishay General Semiconductor - Diodes Division	9,937	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Active	1 Pair Common Cathode	Schottky	45 V	30A	710 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.75 mA @ 45 V	-55°C ~ 150°C	-	-	Surface Mount	TO-263AB (D2PAK)
FEPB16FTHE3_A/P DIODE ARRAY GP 300V 8A TO263AB Vishay General Semiconductor - Diodes Division	5,346	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Standard	300 V	8A	1.3 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	10 µA @ 300 V	-55°C ~ 150°C	Automotive	AEC-Q101	Surface Mount	TO-263AB (D2PAK)
FEPB16GTHE3_A/P DIODE ARRAY GP 400V 8A TO263AB Vishay General Semiconductor - Diodes Division	2,919	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Standard	400 V	8A	1.3 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	10 µA @ 400 V	-55°C ~ 150°C	Automotive	AEC-Q101	Surface Mount	TO-263AB (D2PAK)
FEPB16HTHE3_A/P DIODE ARRAY GP 500V 8A TO263AB Vishay General Semiconductor - Diodes Division	4,556	-	RFQ	Datasheet	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Obsolete	1 Pair Common Cathode	Standard	500 V	8A	1.5 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	10 µA @ 500 V	-55°C ~ 150°C	Automotive	AEC-Q101	Surface Mount	TO-263AB (D2PAK)

WINSUN SOURCING SUPPORT

Need Diode Arrays Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Diode Arrays FAQ

Common questions about selecting, comparing and sourcing Diode Arrays components through Winsun (HK) Electronics.

What should I check when selecting Diode Arrays components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Diode Arrays part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Diode Arrays parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Diode Arrays components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
