Diode Arrays
Browse available Diode Arrays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSI2X55-12ADIODE MOD GP 1200V 56A SOT227B |
291 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 56A | 1.2 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 300 µA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DSEI2X31-12BDIODE MOD GP 1200V 28A SOT227B |
626 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 30A | 2.54 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 750 µA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|

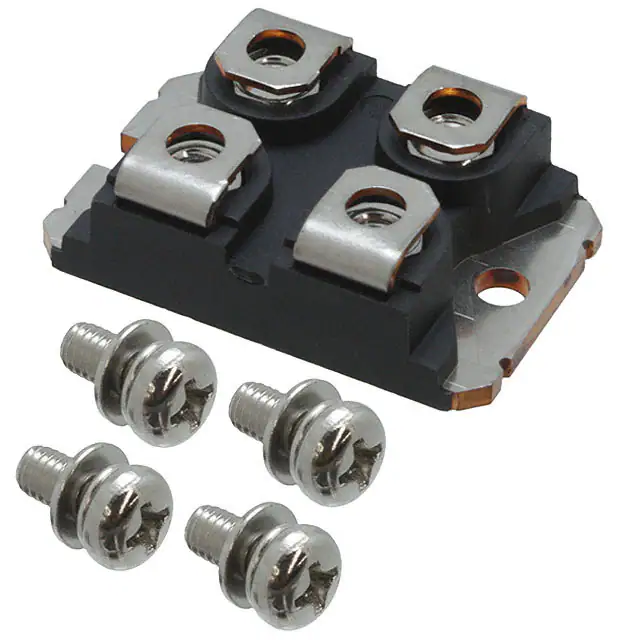

VS-UFB280FA20DIODE MODULE GP 200V 175A SOT227 |
169 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 200 V | 175A (DC) | 1.1 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 50 µA @ 200 V | - | - | - | Chassis Mount | SOT-227 |
|
STPS200170TV1YDIODE MOD SCHOT 170V 100A ISOTOP |
395 | - |
|
Datasheet | Q | ISOTOP | Tube | Active | 2 Independent | Schottky | 170 V | 100A | 850 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 170 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Chassis Mount | ISOTOP® |
|
|
STPS24045TVDIODE MOD SCHOTT 45V 120A ISOTOP |
119 | - |
|
Datasheet | - | ISOTOP | Tube | Active | 2 Independent | Schottky | 45 V | 120A | 670 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 150°C (Max) | - | - | Chassis Mount | ISOTOP® |
|
|
STTH12012TV1DIODE MODULE GP 1200V 60A ISOTOP |
138 | - |
|
Datasheet | - | ISOTOP | Tube | Active | 2 Independent | Standard | 1200 V | 60A | 2.25 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 125 ns | 30 µA @ 1200 V | 150°C (Max) | - | - | Chassis Mount | ISOTOP® |
|

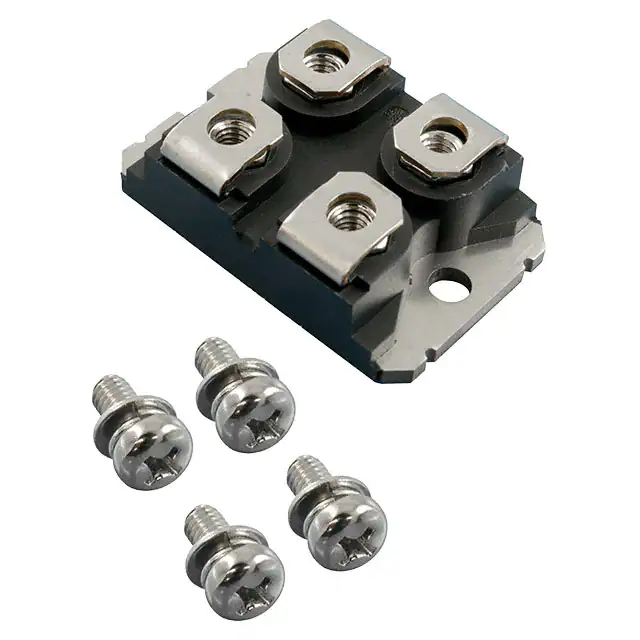

VS-QA250FA20DIODE MOD SCHOT 200V 250A SOT227 |
1,236 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Schottky | 200 V | 250A | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 54 ns | 90 µA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
SK2S160-100DIODE MOD SCHOTT 100V 80A SOT227 |
295 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 100 V | 80A | 800 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
APT2X30D120JDIODE MODULE GP 1200V 30A ISOTOP |
257 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 30A | 2.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 370 ns | 250 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | ISOTOP® |
|
APT2X101S20JDIODE MOD SCHOT 200V 120A ISOTOP |
185 | - |
|
Datasheet | - | ISOTOP | Tube | Active | 2 Independent | Schottky | 200 V | 120A | 950 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 2 mA @ 200 V | -55°C ~ 175°C | - | - | Chassis Mount | ISOTOP® |
|
|
STTH200L06TV1DIODE MODULE GP 600V 120A ISOTOP |
241 | - |
|
Datasheet | - | ISOTOP | Tube | Active | 2 Independent | Standard | 600 V | 120A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 100 µA @ 600 V | 150°C (Max) | - | - | Chassis Mount | ISOTOP® |
|
SK2S200-150DIODE MOD SCHOT 150V 100A SOT227 |
368 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 150 V | 100A | 1.09 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
MEK95-06DADIODE MODULE GP 600V 95A TO240AA |
167 | - |
|
Datasheet | - | TO-240AA | Bulk | Active | 1 Pair Common Cathode | Standard | 600 V | 95A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-240AA |
|
|
DSEI2X61-12BDIODE MOD GP 1200V 52A SOT227B |
246 | - |
|
Datasheet | FRED | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 52A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 2.2 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DSEI2X61-10BDIODE MOD GP 1000V 60A SOT227B |
700 | - |
|
Datasheet | FRED | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1000 V | 60A | 2.3 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 3 mA @ 1000 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DSEI2X121-02ADIODE MOD GP 200V 123A SOT227B |
1,431 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 200 V | 123A | 1.1 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 mA @ 200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DH2X61-18ADIODE MOD GP 1800V 60A SOT227B |
639 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1800 V | 60A | 2.01 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
MDD95-16N1BDIODE MOD GP 1600V 120A TO-240AA |
112 | - |
|
Datasheet | - | TO-240AA | Box | Active | 1 Pair Series Connection | Standard | 1600 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-240AA |
|

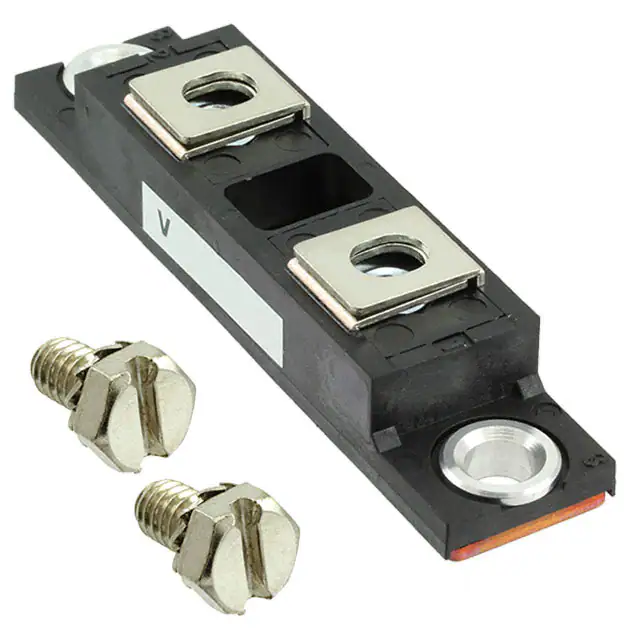

VS-401CNQ045PBFDIODE MOD SCHOT 45V 400A TO244AB |
279 | - |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 400A | 780 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | - | - | - | Chassis Mount | TO-244AB |
|
GD2X50MPS12NDIODE MOD SIC 1200V 76A SOT-227 |
221 | - |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 76A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays FAQ
Common questions about selecting, comparing and sourcing Diode Arrays components through Winsun (HK) Electronics.
What should I check when selecting Diode Arrays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Diode Arrays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Diode Arrays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Diode Arrays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
