Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

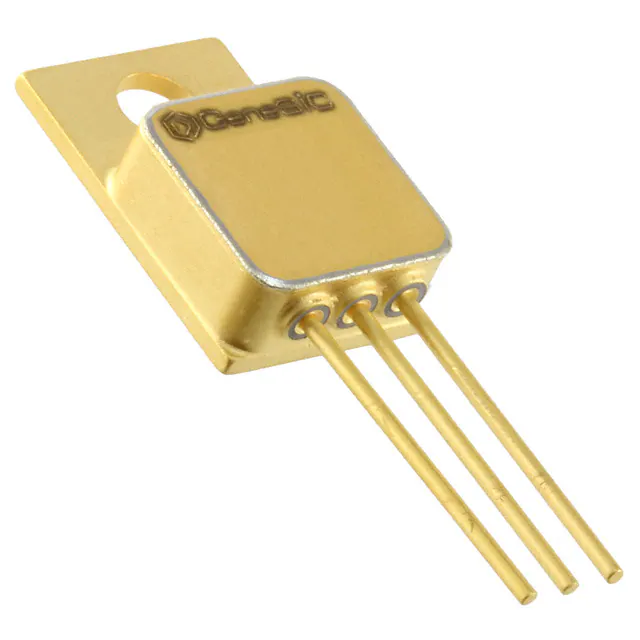

1N8034-GADIODE SIL CARB 650V 9.4A TO257 |
6,554 | - |
|
Datasheet | - | TO-257-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 9.4A | 1.34 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 650 V | 1107pF @ 1V, 1MHz | - | - | Through Hole | TO-257 | -55°C ~ 250°C |
|
1N8035-GADIODE SIL CARB 650V 14.6A TO276 |
3,320 | - |
|
Datasheet | - | TO-276AA | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 14.6A | 1.5 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 650 V | 1107pF @ 1V, 1MHz | - | - | Surface Mount | TO-276 | -55°C ~ 250°C |
|
GAP05SLT80-220DIODE SCHOTTKY 8KV 50MA AXIAL |
9,212 | - |
|
Datasheet | - | Axial | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 8000 V | 50mA | 4.6 V @ 50 mA | No Recovery Time > 500mA (Io) | 0 ns | 3.8 µA @ 8000 V | 25pF @ 1V, 1MHz | - | - | Through Hole | - | -55°C ~ 175°C |
|

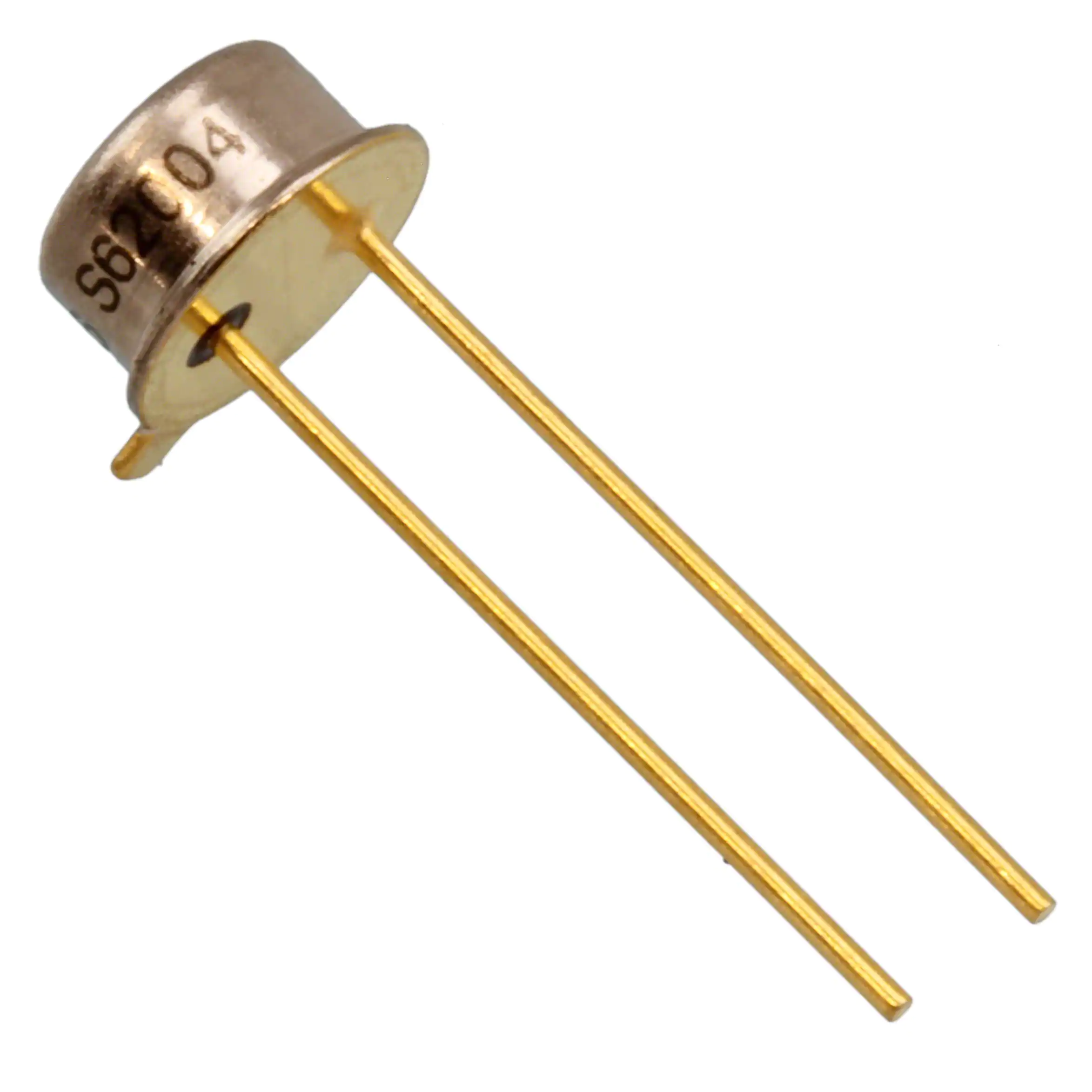

GB02SHT01-46DIODE SIL CARBIDE 100V 4A TO46 |
6,492 | - |
|
Datasheet | - | TO-206AB, TO-46-3 Metal Can | Bulk | Obsolete | SiC (Silicon Carbide) Schottky | 100 V | 4A | 1.6 V @ 1 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 100 V | 76pF @ 1V, 1MHz | - | - | Through Hole | TO-46 | -55°C ~ 210°C |
|
MBRH30020LDIODE SCHOTTKY 20V 300A D-67 |
7,200 | - |
|
Datasheet | - | D-67 | Bulk | Obsolete | Schottky | 20 V | 300A | 580 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
