Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D820N24TXPSA1DIODE GEN PURP 2.4KV 820A |
9,585 | - |
|
Datasheet | - | DO-200AA, A-PUK | Bulk | Obsolete | Standard | 2400 V | 820A | 1.25 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2400 V | - | - | - | Clamp On | - | -40°C ~ 180°C |
|
IDC75S120C5X7SA1SIC CHIP |
8,464 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ND89N12KXPSA1THYR / DIODE MODULE DK |
9,830 | - |
|
Datasheet | - | Module | Tray | Active | Standard | 1200 V | 89A | 1.5 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | - | - | - | Chassis Mount | - | 150°C |
|
|
ND89N16KHPSA2THYR / DIODE MODULE DK |
6,403 | - |
|
Datasheet | - | Module | Tray | Active | Standard | 1600 V | 89A | 1.5 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | - | 150°C |
|
|
ND171N16KHPSA1DIODE GEN PURP 1.6KV 171A PB34-1 |
5,140 | - |
|
Datasheet | - | Module | Tray | Obsolete | Standard | 1600 V | 171A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | BG-PB34-1 | -40°C ~ 135°C |
|
|
ND171N18KHPSA1DIODE GEN PURP 1.8KV 171A PB34-1 |
4,302 | - |
|
Datasheet | - | Module | Tray | Obsolete | Standard | 1800 V | 171A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | - | - | - | Chassis Mount | BG-PB34-1 | -40°C ~ 135°C |
|
|
ND171N16KHPSA2DIODE GEN PURP 1.6KV 171A |
6,215 | - |
|
Datasheet | ND171N | Module | Tray | Active | Standard | 1600 V | 171A | 1.26 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | - | - | - | Chassis Mount | - | 150°C |
|
|
D1030N26TXPSA1DIODE GEN PURP 2.6KV 1030A |
7,040 | - |
|
Datasheet | - | DO-200AB, B-PUK | Tray | Active | Standard | 2600 V | 1030A | 1.11 V @ 10000 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2600 V | - | - | - | Clamp On | - | -40°C ~ 160°C |
|
38DN06B02ELEMPRXPSA1DIODE GP 600V 5140A D-ELEM-1 |
8,819 | - |
|
Datasheet | - | DO-200AA, A-PUK | Tray | Active | Standard | 600 V | 5140A | 960 mV @ 4500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 600 V | - | - | - | Clamp On | BG-D-ELEM-1 | 180°C (Max) |
|

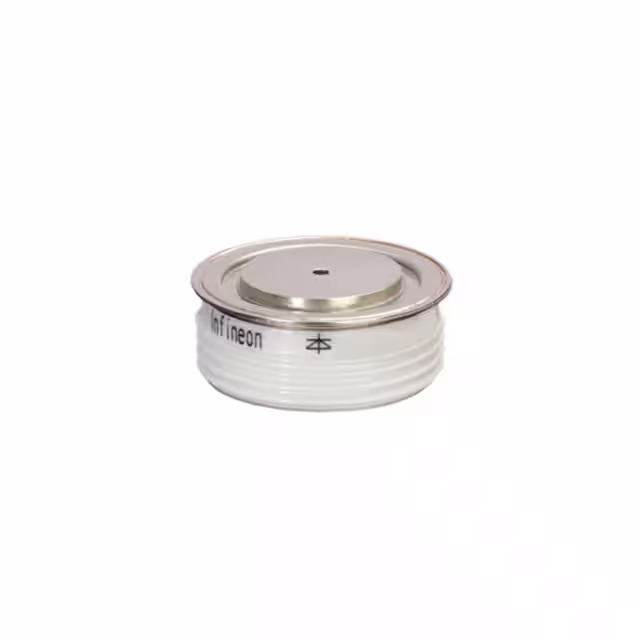

D1050N18TXPSA1DIODE GEN PURP 1.8KV 1050A |
5,596 | - |
|
Datasheet | - | DO-200AB, B-PUK | Tray | Obsolete | Standard | 1800 V | 1050A | 1 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | 60 mA @ 1800 V | - | - | - | Clamp On | - | -40°C ~ 180°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
