Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NA03HSA08-TE12LDIODE SCHOTTKY 80V 3A NA |
8,723 | - |
|
Datasheet | - | DO-221BC, SMA Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Schottky | 80 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-221BC (NA) | -40°C ~ 150°C |
|
|
NA05HSA08-TE12LDIODE SCHOTTKY 80V 5A NA |
11,900 | - |
|
Datasheet | - | DO-221BC, SMA Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Schottky | 80 V | 5A | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-221BC (NA) | -40°C ~ 150°C |
|
FSF10A40DIODE GP 400V 10A TO220 FM |
20,097 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Active | Standard | 400 V | 10A | 1.3 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 30 µA @ 400 V | - | - | - | Through Hole | TO-220-2 Full-Mold | -40°C ~ 150°C |
|
|
FSF10A20DIODE GP 200V 10A TO220 FM |
925 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Active | Standard | 200 V | 10A | 1.03 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 25 µA @ 200 V | - | - | - | Through Hole | TO-220-2 Full-Mold | -40°C ~ 150°C |
|
|
UCQS20A045-TE24L2DIODE SCHOTTKY 45V 20A TO263LP |
6,312 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 45 V | 20A | 540 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | - | - | - | Surface Mount | TO-263LP | -40°C ~ 150°C |
|
|
UCQ30A03-TE24L2DIODE SCHOTTKY 30V 30A TO263LP |
10,325 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 30 V | 30A | 500 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 30 V | - | - | - | Surface Mount | TO-263LP | -40°C ~ 150°C |
|

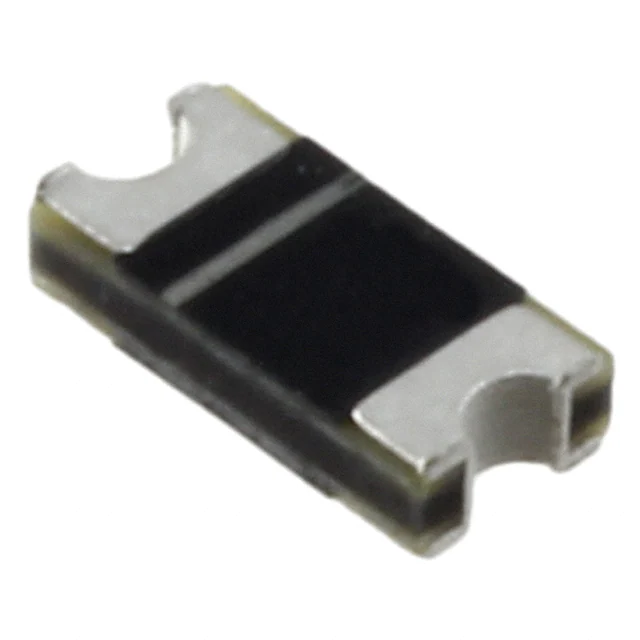

SD2010S040S1R0DIODE SCHOTTKY 40V 1A 2010 |
3,675 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 2010/DO-214AC | -55°C ~ 125°C |
|
|
SD2010S040S2R0DIODE SCHOTTKY 40V 2A 2010 |
4,279 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 40 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 40 V | - | - | - | Surface Mount | 2010/DO-214AC | -55°C ~ 125°C |
|
|
ME01EA045-TE12LDIODE SCHOTTKY 45V 1A SMA-FL |
10,045 | - |
|
Datasheet | - | DO-214AC, SMA Flat Leads | Tape & Reel (TR) | Active | Schottky | 45 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | - | - | - | Surface Mount | SMA-FL | -55°C ~ 150°C |
|
|
ME01EA06-TE12LDIODE SCHOTTKY 60V 1A SMA-FL |
8,944 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 580 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | - | - | Surface Mount | SOD-128 | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
