Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S5GLHE3-TPDIODE GEN PURP 400V 5A SMC |
2,980 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 400 V | 5A | 1.15 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 400 V | 40pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
.jpg "S5DL-TP")
|
S5DL-TPDIODE GEN PURP 200V 5A SMC |
2,975 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Not For New Designs | Standard | 200 V | 5A | 1.2 V @ 5 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 200 V | 100pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
|
S5JLHE3-TPDIODE GEN PURP 600V 5A SMC |
1,603 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 600 V | 5A | 1.15 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 600 V | 40pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
S3JB-TPDIODE GEN PURP 600V 3A DO214AA |
2,205 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.15 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | 40pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | - |
|
|
SK34HE3-TPDIODE SCHOTTKY 40V 3A SMC |
2,880 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | 250pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
|
SK310HE3-TPDIODE SCHOTTKY 100V 3A SMC |
2,795 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 100 V | 3A | 850 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 250pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
|
S8GLHE3-TPDIODE GEN PURP 400V 8A SMC |
2,791 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Standard | 400 V | 8A | 1.05 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 400 V | 150pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|
|
SMLJ60S2-TPDIODE GEN PURP 200V 6A SMC |
8,160 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Not For New Designs | Standard | 200 V | 6A | 1 V @ 6 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 200 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 150°C |
|

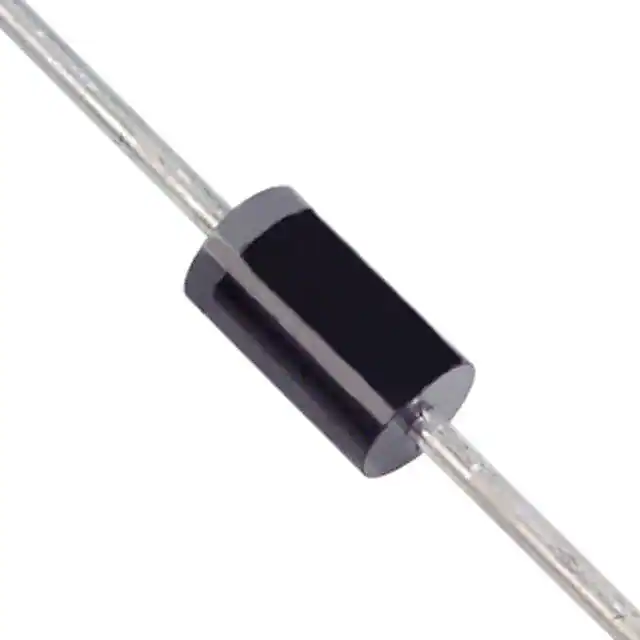

SR5010-TPDIODE SCHOTTKY 100V 5A DO201AD |
1,014 | - |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Active | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | 200pF @ 4V, 1MHz | - | - | Through Hole | DO-201AD | -50°C ~ 150°C |
|
|
SK3150BHE3-LTPDIODE SCHOTTKY 150V 3A DO214AA |
2,705 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 150 V | 3A | 860 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 150 V | 60pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
