Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GP12022-BPSTANDARD RECTIFIER 2200V 120A TO |
1,777 | - |
|
Datasheet | - | TO-264-2 | Tape & Reel (TR) | Active | Standard | 2200 V | 120A | 1.31 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 2200 V | - | - | - | Through Hole | TO-264P | -55°C ~ 150°C |
|
FS1DE-TPDIODE GEN PURP 200V 1A SMAE |
102,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | SMAE | -50°C ~ 150°C |
|
|
FS1M-TPDIODE GEN PURP 1KV 1A DO214AC |
363,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 50pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (HSMA) | -50°C ~ 150°C |
|

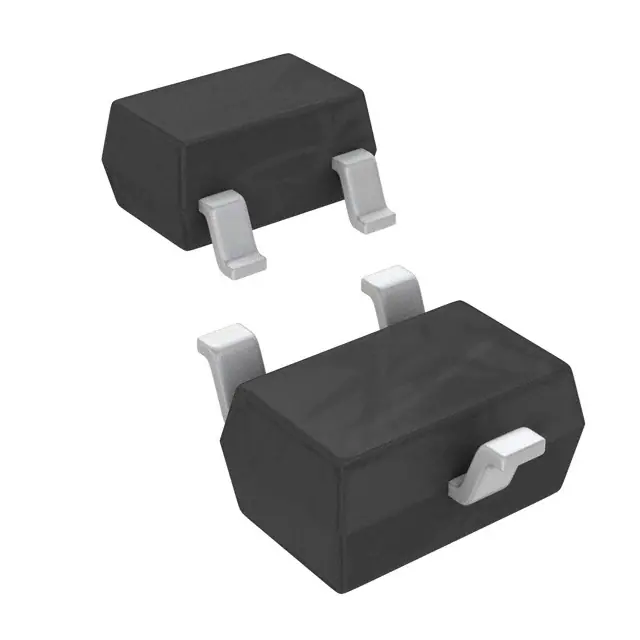

MMBD4148WTHE3-TPDIODE GEN PURP 75V 150MA SOT323 |
6,000 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOT-323 | -55°C ~ 150°C |
|
|
BAS16WTHE3-TPDIODE GEN PURP 75V 150MA SOT323 |
5,990 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | SOT-323 | -55°C ~ 150°C |
|
1SS400-TPDIODE GEN PURP 90V 100MA SOD523 |
14,890 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Standard | 90 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 80 V | 3pF @ 0.5V, 1MHz | - | - | Surface Mount | SOD-523 | 150°C (Max) |
|
|
1N4448WXHE3-TPDIODE GEN PURP 75V 250MA SOD323 |
5,850 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 75 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 2.5 µA @ 75 V | 4pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | -65°C ~ 150°C |
|
|
BAS16WXHE3-TPDIODE GEN PURP 75V 100MA SOD323 |
5,800 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Standard | 75 V | 100mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SOD-323 | -55°C ~ 150°C |
|
|
GS1A-TPDIODE GEN PURP 50V 1A DO214AC |
48,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Standard | 50 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | 15pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (HSMA) | -55°C ~ 150°C |
|
|
SS14E-TPDIODE SCHOTTKY 40V 1A SMAE |
65,673 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | SMAE | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
