Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

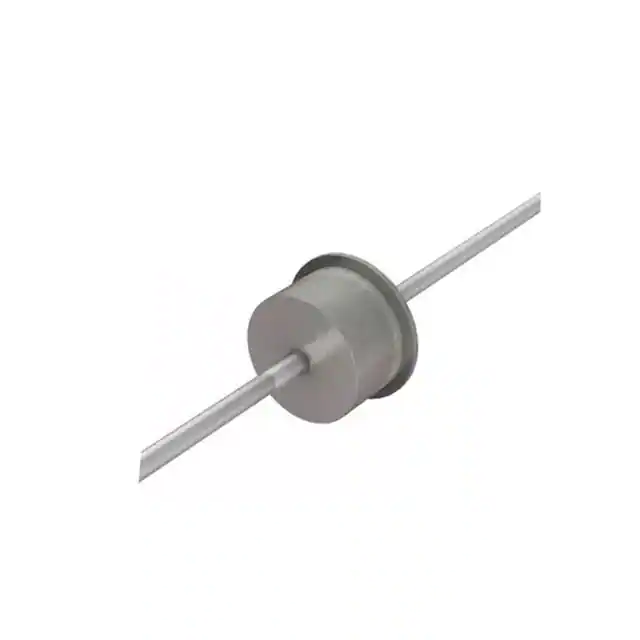

1N5824DIODE SCHOTTKY 30V 5A AXIAL |
7,211 | - |
|
Datasheet | - | Axial | Bulk | Discontinued at Digi-Key | Schottky | 30 V | 5A | 370 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | - | - | - | Through Hole | Axial | -65°C ~ 125°C |
|
1N5825E3DIODE SCHOTTKY 40V 5A AXIAL |
5,648 | - |
|
Datasheet | - | Axial | Bulk | Active | Schottky | 40 V | 5A | 380 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | - | - | - | Through Hole | Axial | -65°C ~ 125°C |
|
|
1N5824E3DIODE SCHOTTKY 30V 5A AXIAL |
4,091 | - |
|
Datasheet | - | Axial | Bulk | Active | Schottky | 30 V | 5A | 370 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 30 V | - | - | - | Through Hole | Axial | -65°C ~ 125°C |
|
JANS1N3595-1DIODE GEN PURP 125V 200MA DO35 |
4,610 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 125 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | Military | MIL-S-19500-241 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANS1N3595-1/TRDIODE GEN PURP 125V 200MA DO35 |
3,888 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 125 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | Military | MIL-S-19500-241 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
S3760DIODE GEN PURP 600V 85A DO5 |
6,377 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 85A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 600 V | - | - | - | Stud Mount | DO-5 | -65°C ~ 200°C |
|
|
S37100DIODE GEN PURP 1KV 85A DO5 |
6,660 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 85A | 1.15 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 1000 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S37120DIODE GEN PURP 1.2KV 85A DO5 |
4,172 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1200 V | 85A | 1.15 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 1200 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
S3740RECTIFIER |
6,879 | - |
|
Datasheet | S37 | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 85A | 1.15 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 400 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
UFR3015RDIODE GEN PURP 150V 30A DO203AA |
3,879 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 30A | 975 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 200 V | 140pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | 175°C (Max) |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
