Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

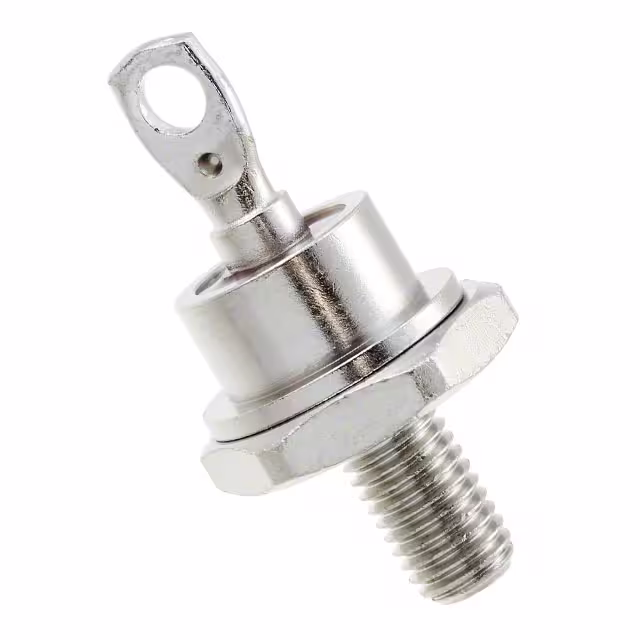

JANTX1N1190DIODE GEN PURP 600V 35A DO5 |
6,396 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 35A | 1.4 V @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | Military | MIL-PRF-19500/297 | Stud Mount | DO-5 | -65°C ~ 175°C |
|
UES2606DIODE GEN PURP 400V 30A TO204AA |
7,472 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 400 V | 30A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 400 V | - | - | - | Through Hole | TO-204AA (TO-3) | -55°C ~ 150°C |
|
|
JANTX1N3673ADIODE GEN PURP 1KV 12A DO203AA |
8,175 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Discontinued at Digi-Key | Standard | 1000 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
SBT2530DIODE SCHOTTKY 30V 25A TO204AA |
8,460 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 30 V | 25A | 1 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 30 V | - | - | - | Through Hole | TO-204AA (TO-3) | - |
|
|
SBT2520DIODE SCHOTTKY 20V 25A TO204AA |
7,777 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Schottky | 20 V | 25A | 1 V @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 20 V | - | - | - | Through Hole | TO-204AA (TO-3) | - |
|
|
R3520PFRECTIFIER |
2,450 | - |
|
Datasheet | R35 | DO-208AA | Bulk | Active | Standard, Reverse Polarity | 200 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 µA @ 200 V | - | - | - | Press Fit | DO-21 | -65°C ~ 200°C |
|
|
R3540PFDIODE GEN PURP REV 400V 35A DO5 |
7,097 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 35A | 1.1 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
R3560PFRECTIFIER |
2,135 | - |
|
Datasheet | R35 | DO-208AA | Bulk | Active | Standard, Reverse Polarity | 600 V | 70A | 1.25 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Press Fit | DO-21 | -65°C ~ 200°C |
|
|
UFT3010DIODE GEN PURP 100V 30A TO204AA |
3,384 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 100 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 100 V | 140pF @ 10V, 1MHz | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 175°C |
|
|
UFT3015DIODE GEN PURP 150V 30A TO204AD |
8,518 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 150 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 150 V | 140pF @ 10V, 1MHz | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
