Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R706DIODE GEN PURP 600V 15A TO204AA |
4,136 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 600 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 1 mA @ 600 V | - | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 150°C |
|
|
R702DIODE GEN PURP 200V 15A TO204AD |
6,673 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 200 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 1 mA @ 200 V | - | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 150°C |
|
|
UFR3140RDIODE GP REV 400V 30A DO203AA |
2,959 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 30A | 1.25 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 15 µA @ 400 V | 115pF @ 10V, 1MHz | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

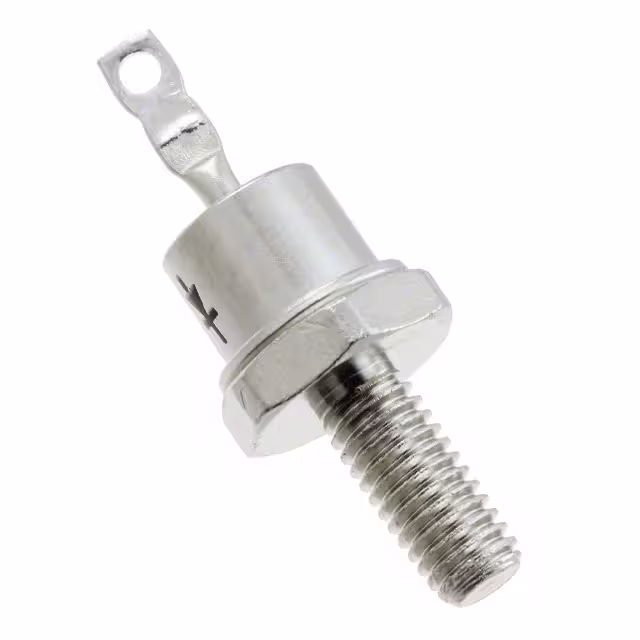

JANTX1N1202ADIODE GEN PURP 200V 12A DO203AA |
9,012 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 2.3 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 200 V | - | Military | MIL-PRF-19500/260 | Stud Mount | DO-203AA | -65°C ~ 150°C |
|
JANTX1N1204ADIODE GEN PURP 400V 12A DO203AA |
8,725 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 2.3 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 400 V | - | Military | MIL-PRF-19500/260 | Stud Mount | DO-203AA | -65°C ~ 150°C |
|
|
JANTX1N1206ADIODE GEN PURP 600V 12A DO203AA |
6,590 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 600 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
JAN1N5822US/TRDIODE SCHOTTKY 40V 3A B SQ-MELF |
4,776 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | Military | MIL-PRF-19500/620 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
|
SD41DIODE SCHOTTKY 30A 35V DO4 |
2,112 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 35 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 35 V | - | - | - | Chassis, Stud Mount | - | - |
|
|
S40A10DIODE GEN PURP 40A DO5 |
2,231 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | - | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | - |
|
|
S40A4DIODE GEN PURP 400V 40A DO5 |
2,818 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
