Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6761-1DIODE SCHOTTKY 100V 1A DO41 |
9,789 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 100 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 70pF @ 5V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 150°C |
|
1N6759DIODE SCHOTTKY 60V 1A DO41 |
5,162 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 60 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
|
1N6760DIODE SCHOTTKY 80V 1A DO41 |
2,440 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 80 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|

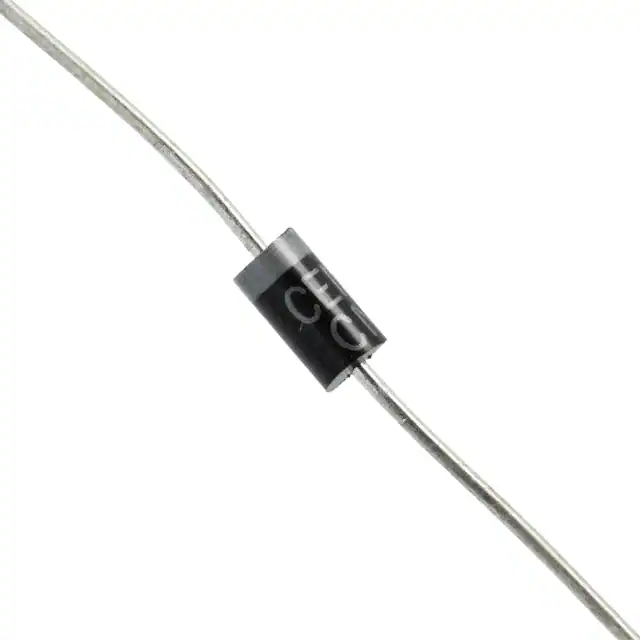

1N6760/TRDIODE SCHOTTKY 80V 1A DO41 |
4,266 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Schottky | 80 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
|
1N6759/TRDIODE SCHOTTKY 60V 1A DO41 |
3,180 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | - | - | Through Hole | DO-41 | -65°C ~ 150°C |
|
|
JANS1N5619USDIODE GEN PURP 600V 1A A SQ-MELF |
4,553 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | - | - | Military | MIL-PRF-19500/429 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
1N6392DIODE SCHOTTKY 45V 54A DO5 |
6,429 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 54A | 820 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 3000pF @ 5V, 1MHz | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 175°C |
|
|
JANS1N5621USDIODE GEN PURP 800V 1A A SQ-MELF |
7,411 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | - | - | Military | MIL-PRF-19500/429 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
JANS1N5619US/TRDIODE GEN PURP 600V 1A A SQ-MELF |
3,569 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | - | - | Military | MIL-PRF-19500/429 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N5621US/TRDIODE GEN PURP 800V 1A A SQ-MELF |
9,613 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | - | - | Military | MIL-PRF-19500/429 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
