Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6642USDIODE GEN PURP 75V 300MA D-5D |
1,066 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
CDLL5819/TRDIODE SCHOTTKY 45V 1A DO213AA |
256 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Schottky | 45 V | 1A | 490 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | 70pF @ 5V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 125°C |
|
|
1N5418DIODE GEN PURP 400V 3A B SQ-MELF |
384 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5809DIODE GEN PURP 100V 3A AXIAL |
210 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTX1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
132 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 70 V | 33mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
815 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | 60pF @ 10V, 1MHz | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
1N6638USDIODE GEN PURP 125V 300MA D-5D |
541 | - |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 125 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4.5 ns | 500 nA @ 125 V | 2.5pF @ 0V, 1MHz | - | - | Surface Mount | D-5D | -65°C ~ 175°C |
|

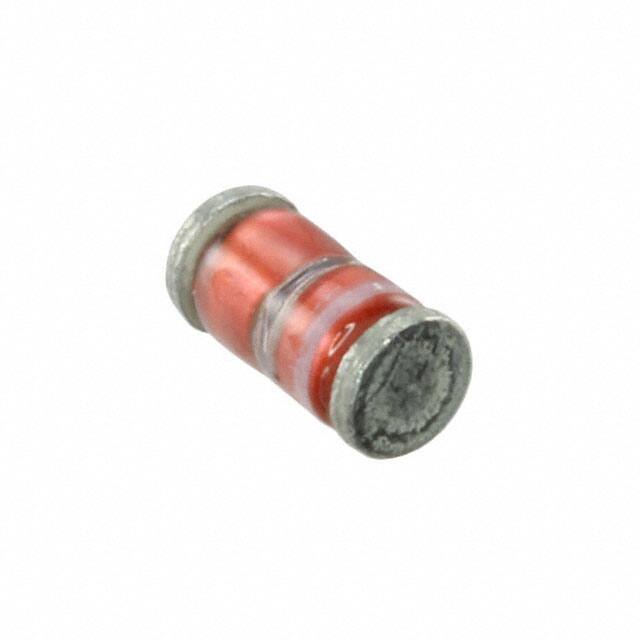

JAN1N5819UR-1DIODE SCHOTTKY 45V 1A DO213AB |
175 | - |
|
Datasheet | - | DO-213AB, MELF (Glass) | Bulk | Active | Schottky | 45 V | 1A | 490 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 45 V | 70pF @ 5V, 1MHz | Military | MIL-PRF-19500/586 | Surface Mount | DO-213AB (MELF, LL41) | -65°C ~ 125°C |
|
|
1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
629 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTX1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
116 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
